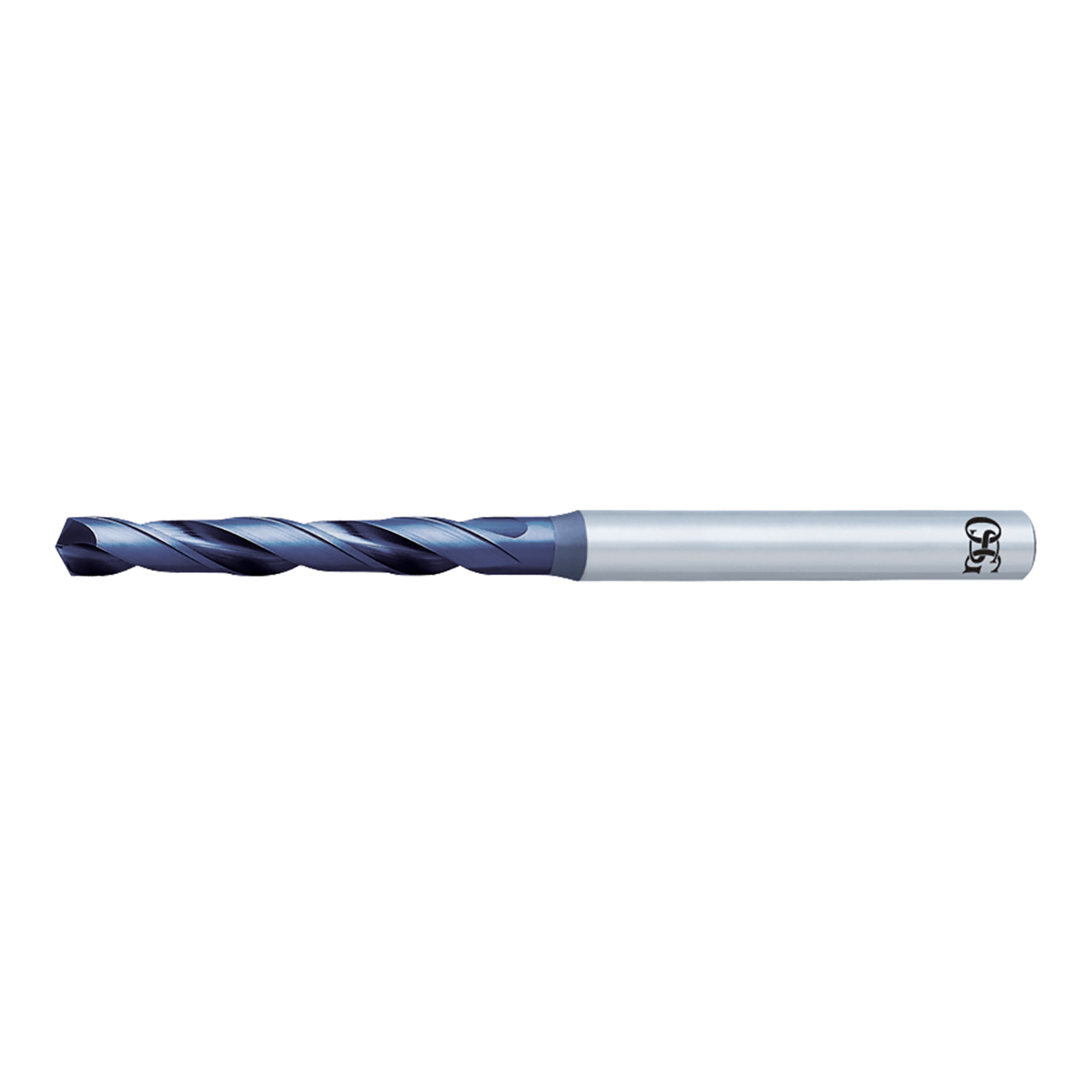

The VPH V-Series drill line is the ideal drilling solution when dealing with exotic materials like Inconel, and when through-tool coolant is not available. OSG's proprietary XPM powedered metal substrate combined withvery own V-coating produces the hardest and most wear resistant drill possible when compared to all other HSS drills.
Features & Benefits:
- Radial Point Thinning: No center drills neeeded Achieves high accuracy while reducing drill thrust force for longer tool life
- OSG V-Coating: OSG's very own recipe which features a combination of Titanium Nitride and layered Titanium Carbon Nitride
- XPM Powdered Metal Substrate: Harder than T15 CPM, this substrate yields maximum hardness for maximum wear resistance
Product Specifications
| Manufacturer Part Number | 8612380 |
| Diameter (Decimal Inch) | 0.150" |
| Diameter (mm) | 3.80mm |
| Flute Length (mm) | 43.00mm |
| Number of Flutes | 2 |
| Overall Length (mm) | 75.00mm |
| Shank Diameter (mm) | 4.00mm |
| Coating | V |
| Material | XPM |
| Helix Direction | Right Hand |
| Helix Angle (Degree) | 30 Degree |
| Point Angle (Degree) | 130 Degree |
| Series | 1950 Series |
| Product Type | Jobber Length Drill Bit |
