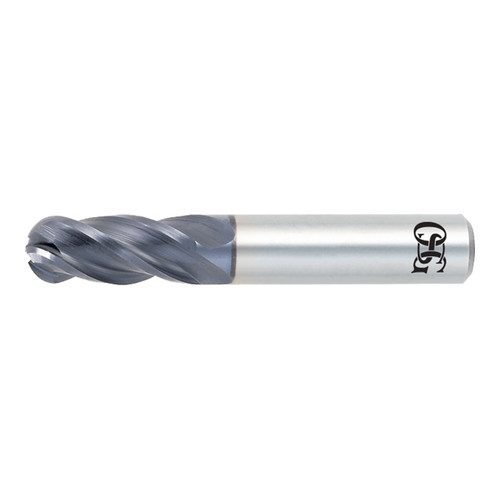

Performance Carbide TiAlN End Mills for Ferrous and Non-Ferrous Materials.
| Manufacturer Part Number | HP441-4062 |
| Cutting Diameter Tolerance (Decimal Inch) | +0 / -0.0015" |
| Cutting Direction | Right Hand |
| Diameter (Inch) | 13/32" |
| Diameter (Decimal Inch) | 0.406" |
| Helix Angle (Degree) | 35 Degree |
| Helix Direction | Right Hand |
| Length of Cut (Decimal Inch) | 1.000" |
| List Name | SQ |
| Number of Flutes | 4 |
| Overall Length (Decimal Inch) | 2.750" |
| Shank Diameter (Decimal Inch) | 0.438" |
| Shank Tolerance | h6 |
| Material | Carbide |
| Coating | TiAlN |
| Series | HP441 |
| Product Type | Square End Mill |
