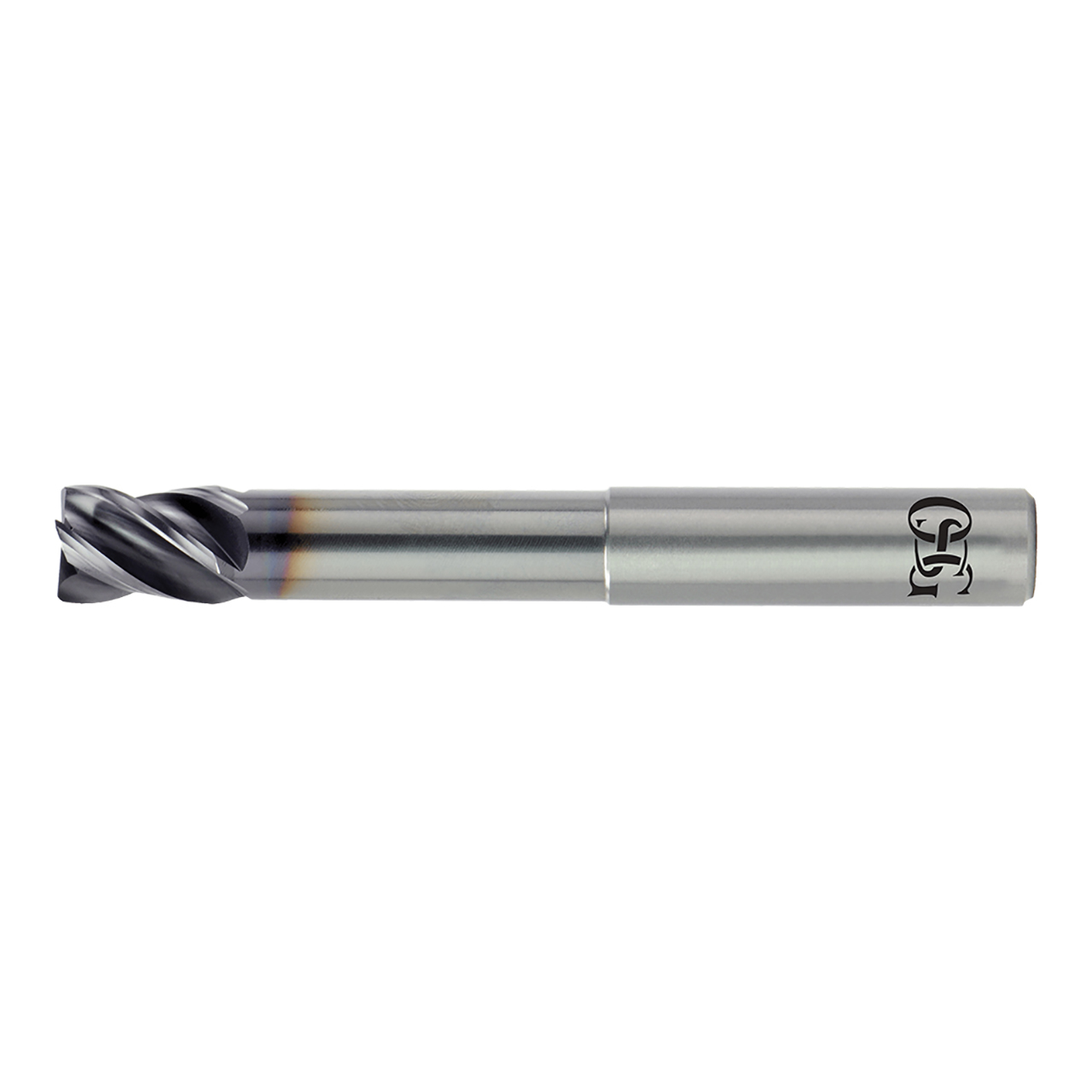

High Performance Variable Index End Mills for Difficult to Machine Materials.
Features & Benefits:
- Unequal Flute Spacing: Reduces vibration from harmonic vibration, increasing life and enabling more aggressive milling.
- Raised Land Configuration: Provides additional stability when taking deeper depths of cut for more consistent performance during roughing.
- TiAIN Coating: Provides stable wear resistance in high temperature milling conditions.
Product Specifications
| Manufacturer Part Number | VG446-1001 |
| Corner Radius (Decimal Inch) | 0.030" |
| Cutting Diameter Tolerance (Decimal Inch) | +0 / -0.0015" |
| Cutting Direction | Right Hand |
| Diameter (Inch) | 1" |
| Diameter (Decimal Inch) | 1.000" |
| Helix Angle (Degree) | 35 Degree |
| Helix Direction | Right Hand |
| Length of Cut (Decimal Inch) | 1.125" |
| List Name | VGX LN-CR/CF |
| Neck Diameter (Decimal Inch) | 0.940" |
| Neck Length (Decimal Inch) | 3.250" |
| Number of Flutes | 4 |
| Overall Length (Decimal Inch) | 5.500" |
| Shank Diameter (Decimal Inch) | 1.000" |
| Shank Tolerance | h6 |
| Material | Carbide |
| Coating | TiAlN |
| Series | VG446 |
| Product Type | Corner Radius End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
