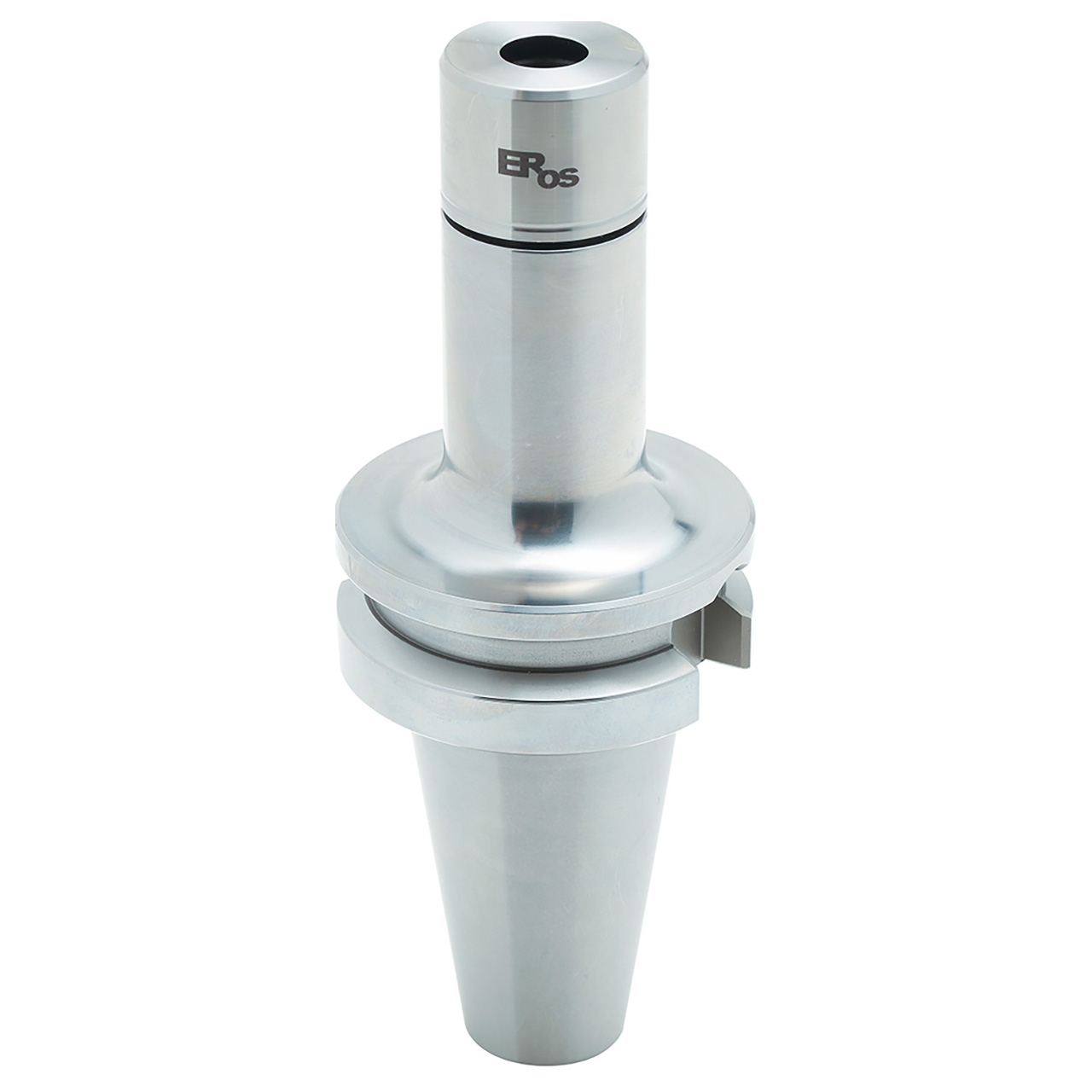

Parlec BT30-32EROS354 | 1.25" Diameter x 1.81" Shank x 3.54" Projection x 5.45" OAL Collet Chuck

$297.92
Brand:
Parlec
Collet Series:
ER32
Shank Size (Decimal Inch):
1.8100"
Body Diameter (Decimal Inch):
1.2500"
Nose Diameter (Decimal Inch):
1.9700"
Shank Length (Decimal Inch):
1.9100"
Overall Length (Decimal Inch):
5.4500"
interval quantity:
1
SKU:
55010973
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Features:

  • Made-in-USA quality
  • Repeatable accuracy of 3 microns at 3X diameter
  • Simplicity-no expensive setup machines required
  • Balanced to 25,000 RPM @ G2.5

Product Specifications
TaperBT30
Collet SeriesER32
Body Diameter (Inch)1.25"
Shank Size (Inch)1.81"
Shank Length (Inch)1.91"
Overall Length (Inch)5.45"
Projection (Inch)3.54"
Nose Diameter (Inch)1.97"
