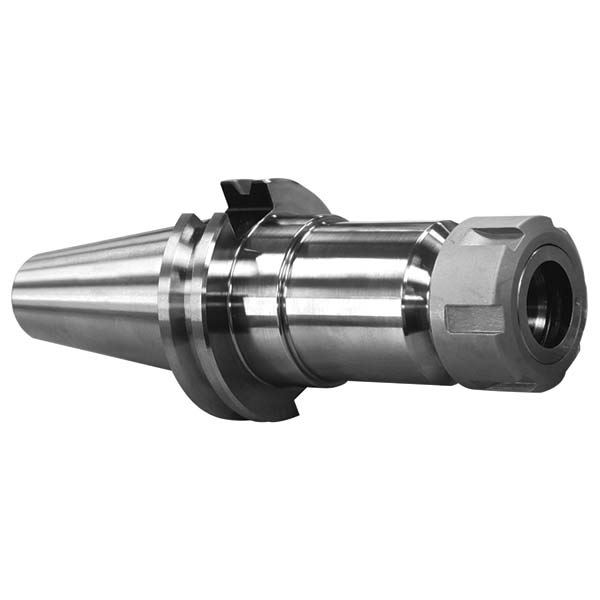

Parlec C40-20ERF300 | 1.34" Capacity 3" Projection CAT 40 Taper ER20 Collet Chuck

$218.00 $152.60
(You save $65.40)
Ships:
From Partner Facility
Brand:
Parlec
Collet Series:
ER20
Shank Size (Decimal Inch):
2.5000"
Body Diameter (Decimal Inch):
1.7500"
Nose Diameter (Decimal Inch):
1.2600"
Shank Length (Decimal Inch):
2.6900"
Overall Length (Decimal Inch):
5.6900"
Ships:
From Partner Facility
interval quantity:
1
SKU:
55002753
UPC:
Weight:
2.50 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Parlec C40-20ERF300 | 1.34" Capacity 3" Projection CAT 40 Taper ER20 Collet Chuck
Product Specifications
Brand PARLEC
Model Number C40-20ERF300
Collet Series ER
Collet Type ER20
Taper CAT 40
Projection 3.00"
Through Coolant Yes
Capacity 1.34"
Collet Range .039" - .511" (1 - 13mm)
Collet Size ER20
Concentricity .0002"
Length From Gage Line To Face of Clamping Nut 3.00"
Maximum Socket Depth 2.43"
Nut Diameter .039" - .511" (1-13mm)
Price Table Description PARLEC ER Collet Chuck - Size: ER-20 Taper: CAT 40
Size ER20
Type ER Collet Chuck
Weight 2.50 lbs.
Country of Origin UNITED STATES OF AMERICA

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
