Parlec C40-38SF315-9 | 3/8" Hole Diameter x 3.15" Projection CAT40 0.94" Nose Diameter 25,000 RPM Shrink Fit Tool Holder & Adapter

$253.92 $186.90
(You save $67.02)
Brand:
Parlec
Taper Size:
CAT40
Hole Diameter (Inch):
3/8"
Projection (Decimal Inch):
3.15"
Nose Diameter (Decimal Inch):
0.94"
Through Coolant (yes/no):
No
SKU:
55011230
Weight:
0.01 LBS
Shipping:
Calculated at Checkout
Parlec C40-38SF315-9 | 3/8" Hole Diameter x 3.15" Projection CAT40 0.94" Nose Diameter 25,000 RPM Shrink Fit Tool Holder & Adapter
Features
  • Our heavy-duty shrinkfit holders deliver the required rigidity and clamping force for heavy chip loads and high metal removal rates.
  • Critical dimensions match popular industry standards.
  • Coolant supplied directly to the cutting zone drastically improves tool life and chip evacuation.
  • Extreme concentricity, 3 Microns.
  • Balanced up to 25,000 rpm.

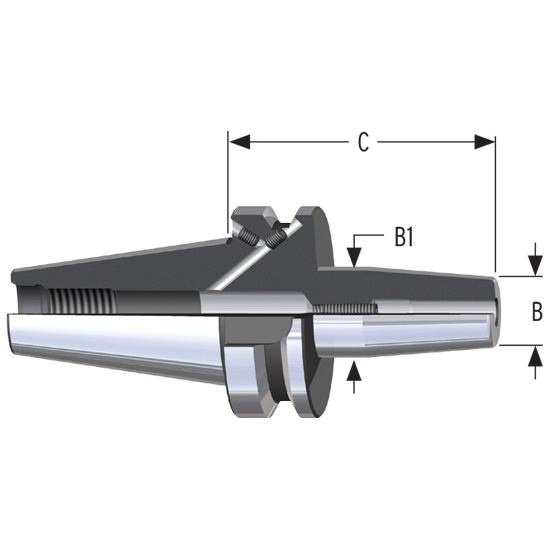

Product Specifications
Size (Hole Diameter) 3/8"
B (Nose Diameter) 0.94"
B1 1.26"
C (Projection) 3.15"
Style 2
Taper Size CAT40
Coolant Through (Yes/No) No
Weight (lbs) 0.01
