Features
- Our heavy-duty shrinkfit holders deliver the required rigidity and clamping force for heavy chip loads and high metal removal rates.
- Critical dimensions match popular industry standards.
- Coolant supplied directly to the cutting zone drastically improves tool life and chip evacuation.
- Extreme concentricity, 3 Microns.
- Balanced up to 25,000 rpm.

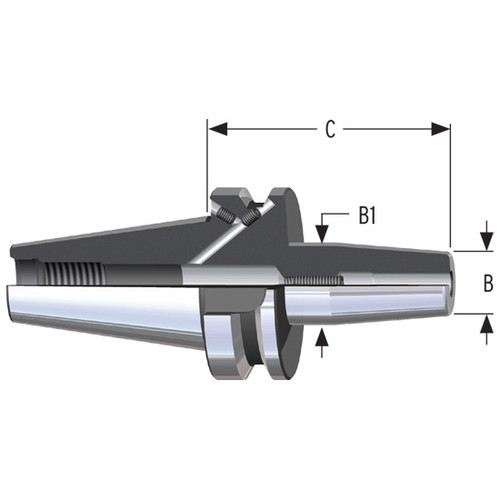

Product Specifications
| Size (Hole Diameter) | 8mm |
| B (Nose Diameter) | 21mm |
| B1 | 27mm |
| C (Projection) | 80mm |
| Style | 2 |
| Taper Size | CAT40 |
| Coolant Through (Yes/No) | No |
| Weight (lbs) | 0.01 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Parlec
Taper Size:
CAT40
Hole Diameter (mm):
8mm
Projection (mm):
80mm
Nose Diameter (mm):
21mm
Through Coolant:
No
Ships:
From Partner Facility
