Parlec C40A-50SF315-9C | 1/2" Hole Diameter x 3.15" Projection CAT40 0.94" Nose Diameter 25,000 RPM Through Coolant Shrink Fit Tool Holder & Adapter

$243.80 $185.50
(You save $58.30)
Brand:
Parlec
Taper Size:
CAT40
Hole Diameter (Inch):
1/2"
Projection (Decimal Inch):
3.15"
Nose Diameter (Decimal Inch):
0.94"
Through Coolant (yes/no):
Yes
SKU:
55014156
Weight:
0.01 LBS
Shipping:
Calculated at Checkout
Parlec C40A-50SF315-9C | 1/2" Hole Diameter x 3.15" Projection CAT40 0.94" Nose Diameter 25,000 RPM Through Coolant Shrink Fit Tool Holder & Adapter
Features
  • Our heavy-duty shrinkfit holders deliver the required rigidity and clamping force for heavy chip loads and high metal removal rates.
  • Critical dimensions match popular industry standards.
  • Coolant supplied directly to the cutting zone drastically improves tool life and chip evacuation.
  • Extreme concentricity, 3 Microns.
  • Balanced up to 25,000 rpm.

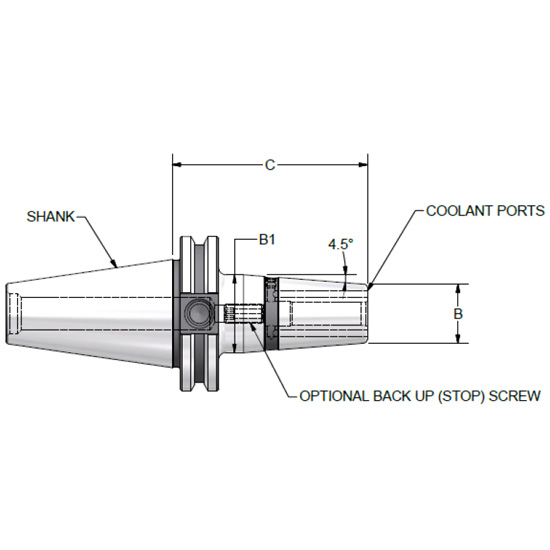

Product Specifications
Size (Hole Diameter) 1/2"
B (Nose Diameter) 0.94"
B1 1.26"
C (Projection) 3.15"
Style 1
Taper Size CAT40
Coolant Through (Yes/No) Yes
Weight (lbs) 0.01
