Parlec C50-31SF630-9 | 5/16" Hole Diameter x 6.30" Projection CAT50 0.83" Nose Diameter 25,000 RPM Shrink Fit Tool Holder & Adapter

$415.84
Ships:
From Partner Facility
Brand:
Parlec
Taper Size:
CAT50
Hole Diameter (Inch):
5/16"
Projection (Decimal Inch):
6.30"
Nose Diameter (Decimal Inch):
0.83"
Through Coolant:
No
Ships:
From Partner Facility
SKU:
55011666
UPC:
Weight:
0.01 LBS
Shipping:
Free Shipping
Features
  • Our heavy-duty shrinkfit holders deliver the required rigidity and clamping force for heavy chip loads and high metal removal rates.
  • Critical dimensions match popular industry standards.
  • Coolant supplied directly to the cutting zone drastically improves tool life and chip evacuation.
  • Extreme concentricity, 3 Microns.
  • Balanced up to 25,000 rpm.

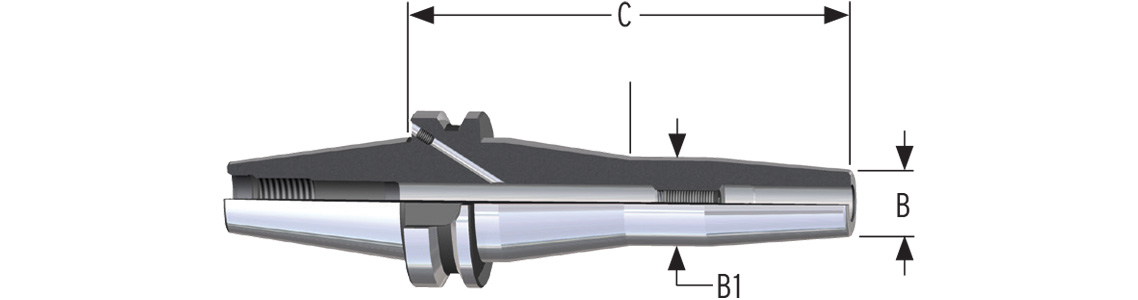

Product Specifications
Size (Hole Diameter) 5/16"
B (Nose Diameter) 0.83"
B1 1.06"
C (Projection) 6.30"
Style 3
Taper Size CAT50
Coolant Through (Yes/No) No
Weight (lbs) 0.01
