Parlec C50A-10SF394-9C | 1" Hole Diameter x 3.94" Projection CAT50 1.73" Nose Diameter 25,000 RPM Through Coolant Shrink Fit Tool Holder & Adapter

$377.20
Ships:
From Partner Facility
Brand:
Parlec
Taper Size:
CAT50
Hole Diameter (Inch):
1"
Projection (Decimal Inch):
3.94"
Nose Diameter (Decimal Inch):
1.73"
Through Coolant:
Yes
Ships:
From Partner Facility
SKU:
55014166
UPC:
Weight:
0.01 LBS
Shipping:
Free Shipping
Features
  • Our heavy-duty shrinkfit holders deliver the required rigidity and clamping force for heavy chip loads and high metal removal rates.
  • Critical dimensions match popular industry standards.
  • Coolant supplied directly to the cutting zone drastically improves tool life and chip evacuation.
  • Extreme concentricity, 3 Microns.
  • Balanced up to 25,000 rpm.

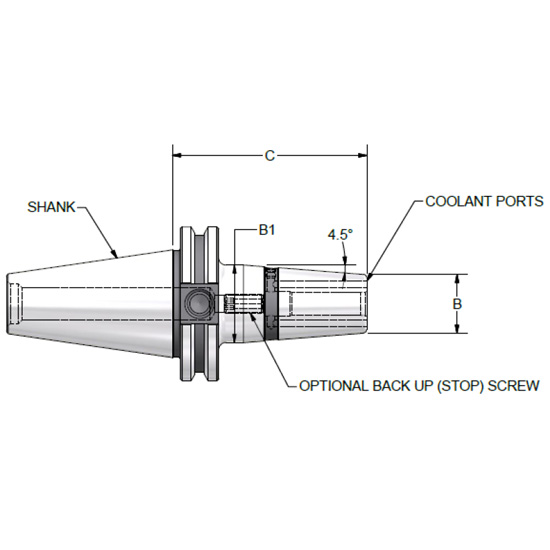

Product Specifications
Size (Hole Diameter) 1"
B (Nose Diameter) 1.73"
B1 2.09"
C (Projection) 3.94"
Style 1
Taper Size CAT50
Coolant Through (Yes/No) Yes
Weight (lbs) 0.01
