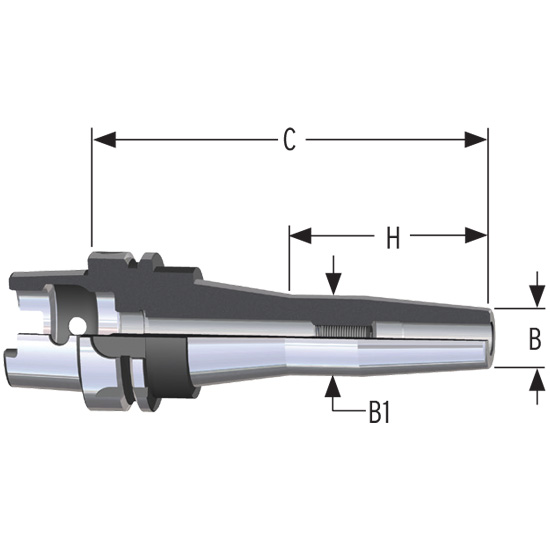

Parlec H100A-10SF630-9 | 1" Hole Diameter x 6.30" Projection HSK100A 1.73" Nose Diameter 25,000 RPM Shrink Fit Tool Holder & Adapter

About This Item

Features

• Our heavy-duty shrinkfit holders deliver the required rigidity and clamping force for heavy chip loads and high metal removal rates.
• Critical dimensions match popular industry standards.
• Coolant supplied directly to the cutting zone drastically improves tool life and chip evacuation.
• Extreme concentricity, 3 Microns.
• Balanced up to 25,000 rpm.

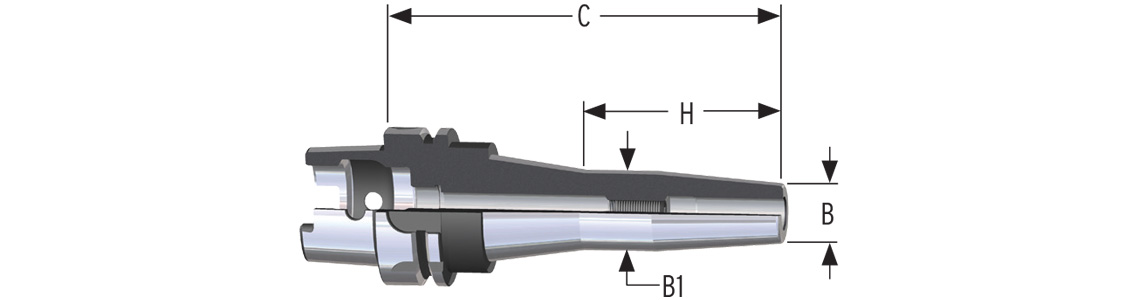

Product Specifications

Size (Hole Diameter)	1"
B (Nose Diameter)	1.73"
B1	2.09"
C (Projection)	6.30"
Style	3
Taper Size	HSK100A
Coolant Through (Yes/No)	No
Weight (lbs)	0.01
