Parlec H100A-10SHD787-9C | 1" Hole Diameter x 7.87" Projection HSK100A 2.28" Nose Diameter 25,000 RPM Through Coolant Shrink Fit Tool Holder & Adapter

About This Item

Features

• Our heavy-duty shrinkfit holders deliver the required rigidity and clamping force for heavy chip loads and high metal removal rates.
• Critical dimensions match popular industry standards.
• Coolant supplied directly to the cutting zone drastically improves tool life and chip evacuation.
• Extreme concentricity, 3 Microns.
• Balanced up to 25,000 rpm.

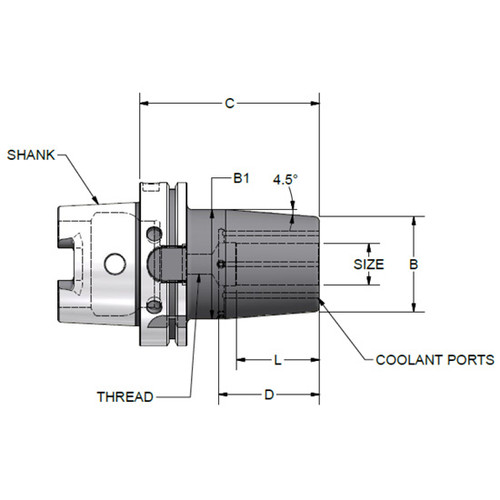

Product Specifications

Size (Hole Diameter)	1"
B (Nose Diameter)	2.28"
B1	2.64"
C (Projection)	7.87"
Style	1
Taper Size	HSK100A
Coolant Through (Yes/No)	Yes
Weight (lbs)	0.11
