Parlec H100A-38SF354-9 | 3/8" Hole Diameter x 3.54" Projection HSK100A 0.94" Nose Diameter 25,000 RPM Shrink Fit Tool Holder & Adapter

$434.24
Ships:
From Partner Facility
Brand:
Parlec
Taper Size:
HSK100A
Hole Diameter (Inch):
3/8"
Projection (Decimal Inch):
3.54"
Nose Diameter (Decimal Inch):
0.94"
Through Coolant:
No
Ships:
From Partner Facility
SKU:
55013399
UPC:
Weight:
0.01 LBS
Shipping:
Free Shipping
Features
  • Our heavy-duty shrinkfit holders deliver the required rigidity and clamping force for heavy chip loads and high metal removal rates.
  • Critical dimensions match popular industry standards.
  • Coolant supplied directly to the cutting zone drastically improves tool life and chip evacuation.
  • Extreme concentricity, 3 Microns.
  • Balanced up to 25,000 rpm.

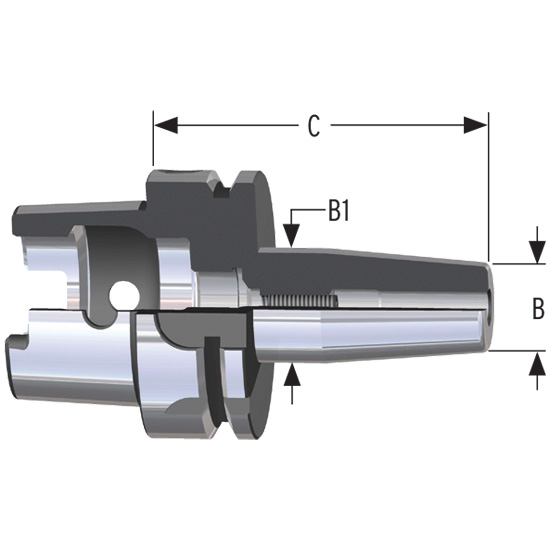

Product Specifications
Size (Hole Diameter) 3/8"
B (Nose Diameter) 0.94"
B1 1.26"
C (Projection) 3.54"
Style 2
Taper Size HSK100A
Coolant Through (Yes/No) No
Weight (lbs) 0.01
