Parlec H63A-12SF630-9C | 1-1/4" Hole Diameter x 6.300" Projection HSK63A 1.730" Nose Diameter 25,000 RPM Through Coolant Shrink Fit Tool Holder & Adapter

About This Item

Features

• Our heavy-duty shrinkfit holders deliver the required rigidity and clamping force for heavy chip loads and high metal removal rates.
• Critical dimensions match popular industry standards.
• Coolant supplied directly to the cutting zone drastically improves tool life and chip evacuation.
• Extreme concentricity, 3 Microns.
• Balanced up to 25,000 rpm.



Product Specifications

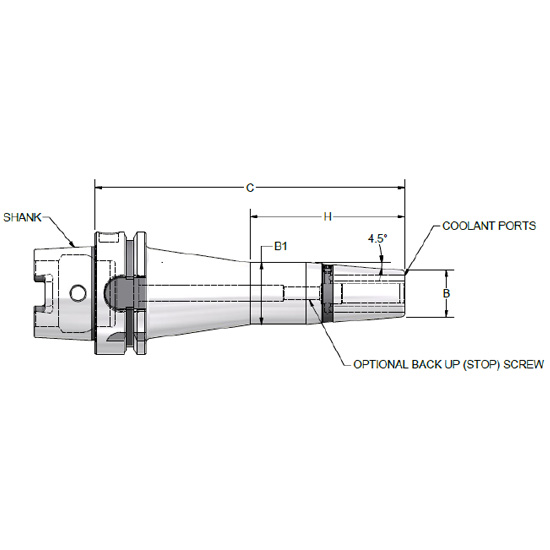

Size (Hole Diameter)	1-1/4"
B (Nose Diameter)	1.73"
B1	2.09"
C (Projection)	6.30"
Style	2
Taper Size	HSK63A
Coolant Through (Yes/No)	Yes
Weight (lbs)	0.11
