Parlec H63A-M06SF80-9C | 6mm Hole Diameter x 80mm Projection HSK63A 21mm Nose Diameter 25,000 RPM Through Coolant Shrink Fit Tool Holder & Adapter

$280.00
Ships:
From Partner Facility
Brand:
Parlec
Taper Size:
HSK63A
Hole Diameter (mm):
6mm
Projection (mm):
80mm
Nose Diameter (mm):
21mm
Through Coolant:
Yes
Ships:
From Partner Facility
SKU:
55022419
UPC:
Weight:
0.11 LBS
Shipping:
Free Shipping
Features
  • Our heavy-duty shrinkfit holders deliver the required rigidity and clamping force for heavy chip loads and high metal removal rates.
  • Critical dimensions match popular industry standards.
  • Coolant supplied directly to the cutting zone drastically improves tool life and chip evacuation.
  • Extreme concentricity, 3 Microns.
  • Balanced up to 25,000 rpm.

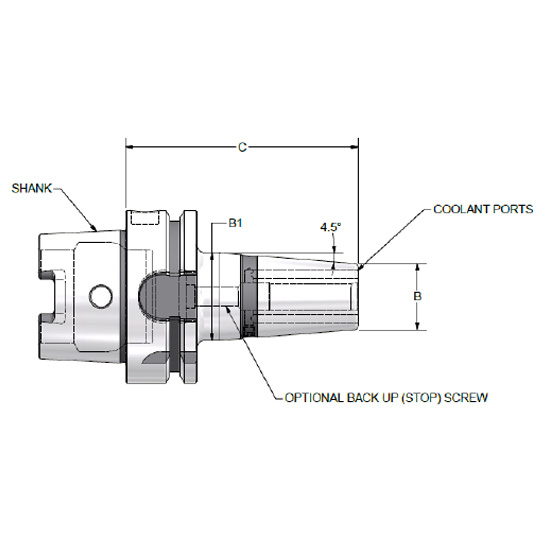

Product Specifications
Size (Hole Diameter) 6mm
B (Nose Diameter) 21mm
B1 27mm
C (Projection) 80mm
Style 1
Taper Size HSK63A
Coolant Through (Yes/No) Yes
Weight (lbs) 0.11
