Parlec H63A-M10SF130-9C | 10mm Hole Diameter x 130mm Projection HSK63A 24mm Nose Diameter 25,000 RPM Through Coolant Shrink Fit Tool Holder & Adapter

$353.00 $335.35
(You save $17.65)
Ships:
From Partner Facility
Brand:
Parlec
Taper Size:
HSK63A
Hole Diameter (mm):
10mm
Projection (mm):
130mm
Nose Diameter (mm):
24mm
Through Coolant:
Yes
Ships:
From Partner Facility
interval quantity:
1
SKU:
55022426
UPC:
Weight:
0.11 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping
Parlec H63A-M10SF130-9C | 10mm Hole Diameter x 130mm Projection HSK63A 24mm Nose Diameter 25,000 RPM Through Coolant Shrink Fit Tool Holder & Adapter

Related Products

Features
  • Our heavy-duty shrinkfit holders deliver the required rigidity and clamping force for heavy chip loads and high metal removal rates.
  • Critical dimensions match popular industry standards.
  • Coolant supplied directly to the cutting zone drastically improves tool life and chip evacuation.
  • Extreme concentricity, 3 Microns.
  • Balanced up to 25,000 rpm.

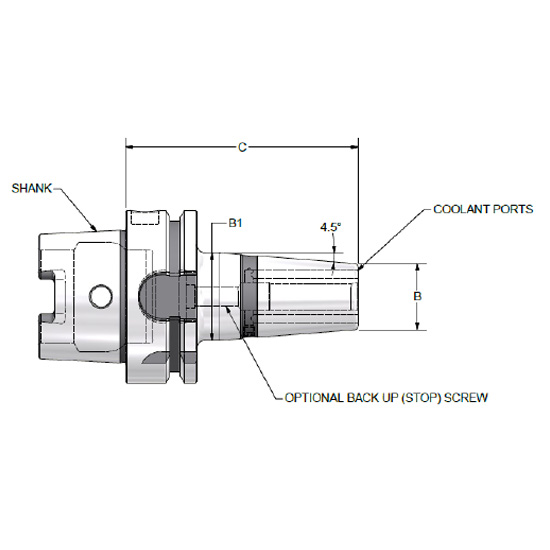

Product Specifications
Size (Hole Diameter) 10mm
B (Nose Diameter) 24mm
B1 32mm
C (Projection) 130mm
Style 1
Taper Size HSK63A
Coolant Through (Yes/No) Yes
Weight (lbs) 0.11
