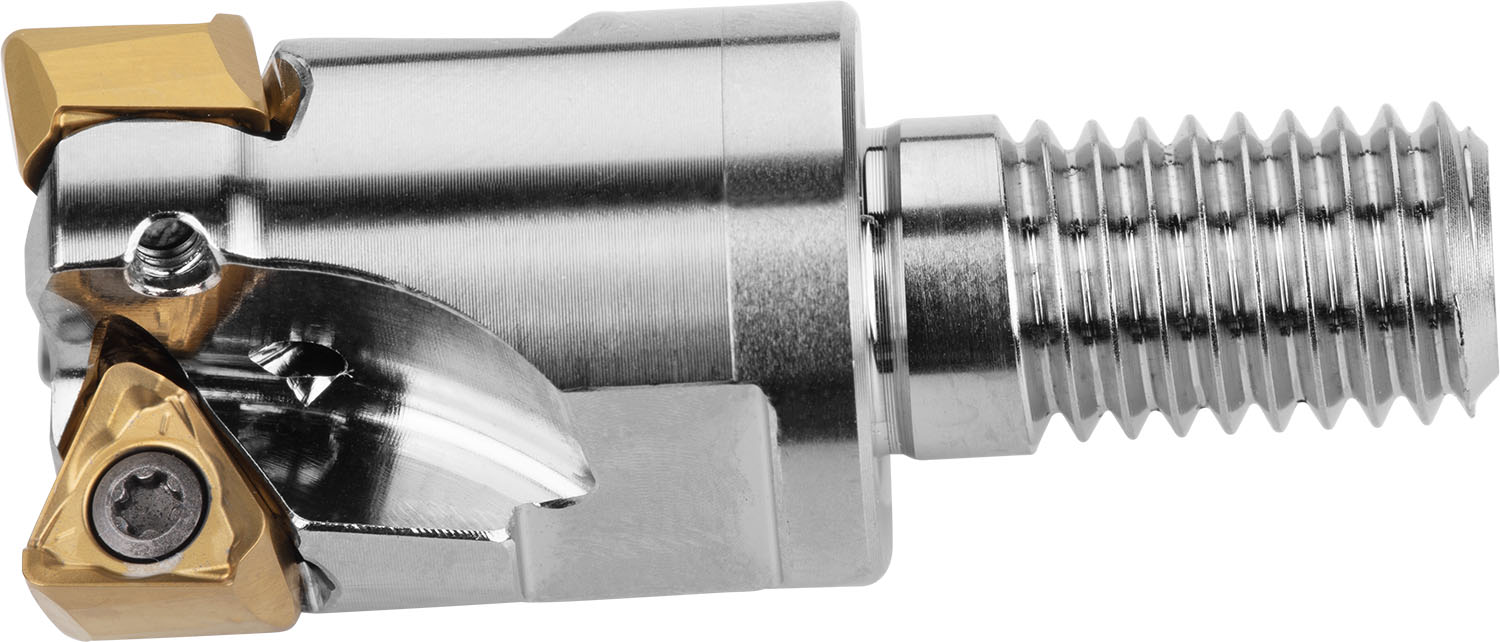

Shoulder face mill with double negative geometry which utilises 3 off TNGX 1004.. double-sided inserts, cutting diameter .750'' with 90 Degree approach angle and M10 threaded shank for standard modular tool-holders, 1.024'' protrusion length, through coolant for face milling, shallow shoulder milling and shallow slot milling with a maximum depth of cut of .197''.
Product Specifications
| EDP Number | 7276938 |
| Peripheral Effective Cutting Edge Count | 3 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | -16.5 |
| Radial Rake Angle | -11 |
| Connection Diameter (mm) | 10.5 mm |
| Connection Diameter (Inch) | 0.413" |
| Cutting Diameter (mm) | 19.1 mm |
| Cutting Diameter (Inch) | 0.75" |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Functional Length (Inch) | 1.024" |
| Thread Diameter Size | M10 |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Related Products
Pramet
Pramet 6790701 | 0.750" Diameter x 1.772" OAL Indexable Square-Shoulder End Mill
$288.00
$256.32
Pramet
Pramet 6790627 | 0.750" Diameter x 1.772" OAL Indexable Square-Shoulder End Mill
$275.00
$244.75
Pramet
Pramet 7276937 | 0.750" Diameter x 1.772" OAL Indexable Square-Shoulder End Mill
$306.00
$272.34
Pramet
Pramet 7178500 | 0.787" Diameter x 1.772" OAL Indexable Square-Shoulder End Mill
$306.00
$272.34
Brand:
Pramet
Cutting Diameter (Decimal Inch):
0.7500"
Cutting Diameter (mm):
19.10mm
Shank Diameter (Decimal Inch):
0.4130"
Shank Diameter (mm):
10.50mm
Overall Length/Projection (Decimal Inch):
1.7720"
Overall Length/Projection (mm):
45.00mm
Through Coolant:
Yes
interval quantity:
1
