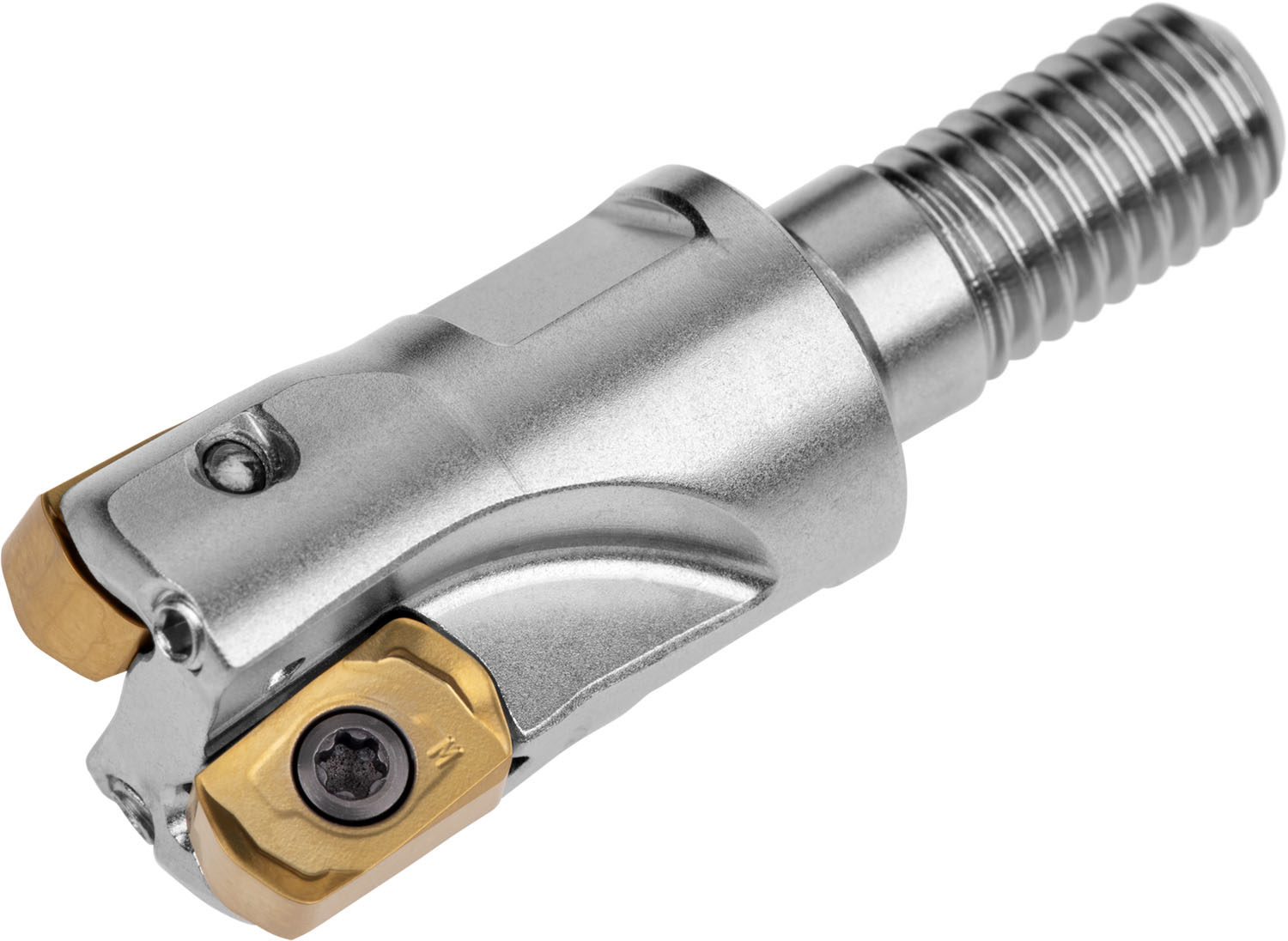

High feed cutter with double negative geometry which utilises 3 off BNGX 10T3.. or ANHX 10T3.. inserts, cutting diameter .75'' with 20 Degree approach angle and M10 threaded shank for standard modular tool-holders, 1.181'' protrusion length, through coolant for face milling, copy milling, deep shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of .039''.
Product Specifications
| EDP Number | 7477732 |
| Peripheral Effective Cutting Edge Count | 3 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | -10.5 |
| Radial Rake Angle | -10 |
| Max Rotational Speed | 28400 |
| Connection Diameter (mm) | 10.5 mm |
| Connection Diameter (Inch) | 0.413" |
| Cutting Diameter (mm) | 12.4 mm |
| Cutting Diameter (Inch) | 0.49" |
| Max Cutting Diameter (Inch) | 0.75" |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Functional Length (Inch) | 1.181" |
| Thread Diameter Size | M10 |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Pramet
