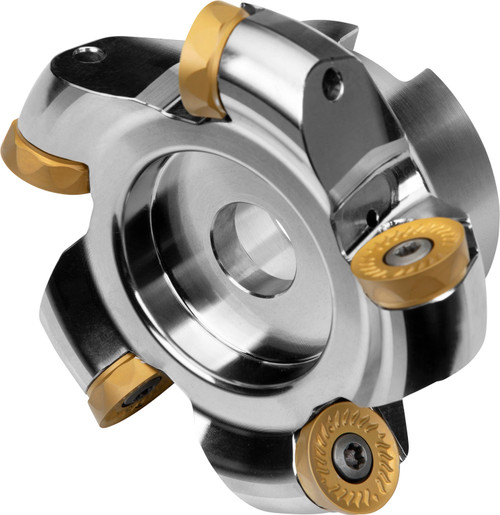

Copy face mill with double negative geometry which utilises 5 off RCMT 2006MO.. single-sided inserts, cutting diameter 100 mm with 32 mm connection bore according to DIN 8030-A, 50 mm protrusion length, through coolant for face milling, copy milling, ramping, helical milling and progressive plunge milling with a maximum depth of cut of 10.0 mm.
Product Specifications
| EDP Number | 7155925 |
| Peripheral Effective Cutting Edge Count | 5 |
| Insert Index Count | 5 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | -7 |
| Radial Rake Angle | -1.7 |
| Max Rotational Speed | 7600 |
| Connection Diameter (mm) | 32 mm |
| Connection Diameter (Inch) | 1.26" |
| Counterbore Diameter Connection Bore (mm) | 45 mm |
| Keyway Width (mm) | 14.4 mm |
| Keyway Depth (mm) | 8 mm |
| Cutting Diameter (mm) | 80 mm |
| Max Cutting Diameter (mm) | 100 mm |
| Cutting Diameter (Inch) | 3.15" |
| Functional Length (mm) | 50 mm |
