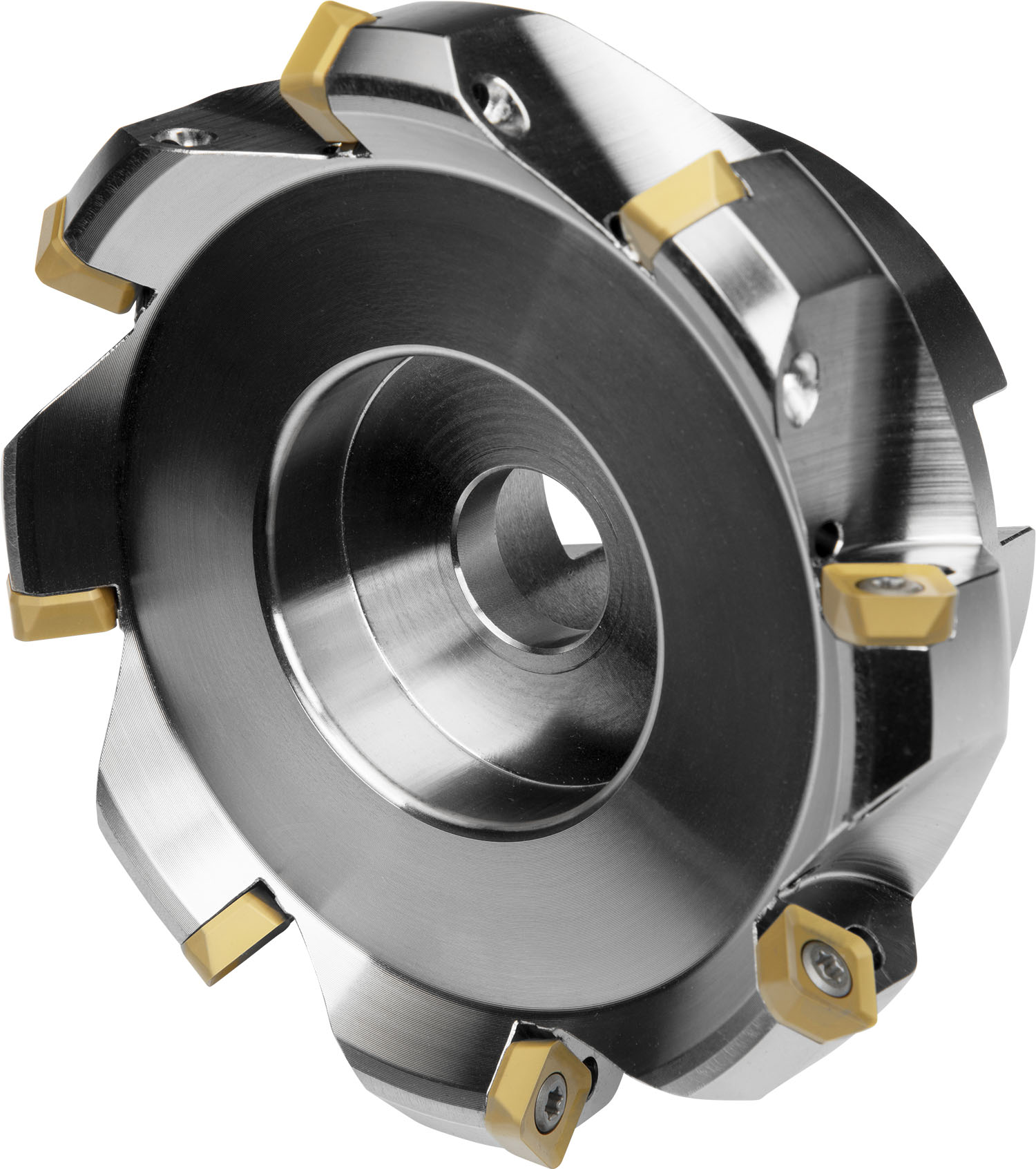

Face mill with positve/negative geometry which utilises 7 off SNKT 1205AZ.. or SNMT 1205AZ.. double-sided inserts, cutting diameter 100 to maximum 115 mm with 45° approach angle and 32 mm connection bore according to DIN 8030-A, 50 mm protrusion length, through coolant for face milling and chamfering with a maximum depth of cut of 6.5 mm.
Product Specifications
| EDP Number | 6758342 |
| Peripheral Effective Cutting Edge Count | 7 |
| Insert Index Count | 7 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | 7.5 |
| Radial Rake Angle | -5.5 |
| Max Rotational Speed | 6900 |
| Connection Diameter (mm) | 32 mm |
| Connection Diameter (Inch) | 1.26" |
| Counterbore Diameter Connection Bore (mm) | 45 mm |
| Keyway Width (mm) | 14.4 mm |
| Keyway Depth (mm) | 8 mm |
| Cutting Diameter (mm) | 100 mm |
| Max Cutting Diameter (mm) | 115 mm |
| Cutting Diameter (Inch) | 3.937" |
| Functional Length (mm) | 50 mm |
