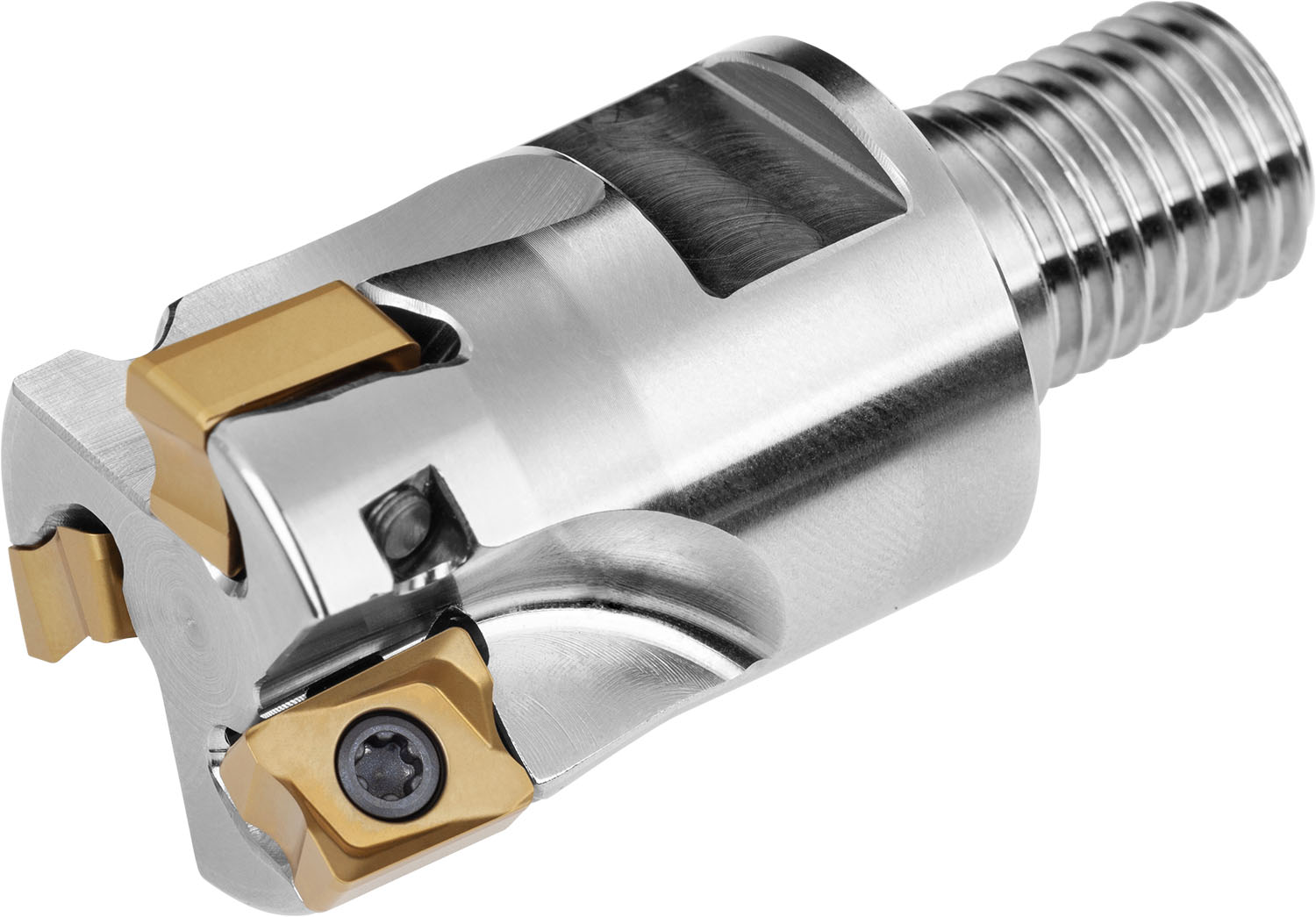

Shoulder mill with double negative geometry which utilises 2 off LNGX 1205.. or LNGU 1205.. double-sided inserts, cutting diameter 1.000'' with 90° approach angle and M12 threaded shank for standard modular tool-holders, 1.378'' protrusion length, through coolant for shallow shoulder milling, shallow slot milling and plunge milling with a maximum depth of cut of .354''.
Product Specifications
| EDP Number | 6792997 |
| Peripheral Effective Cutting Edge Count | 2 |
| Cutting Pitch Differential | 1 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | -6 |
| Radial Rake Angle | -22 |
| Connection Diameter (mm) | 12.5 mm |
| Connection Diameter (Inch) | 0.492" |
| Cutting Diameter (mm) | 25.4 mm |
| Cutting Diameter (Inch) | 1" |
| Overall Length (mm) | 83 mm |
| Overall Length (Inch) | 3.268" |
| Functional Length (Inch) | 1.378" |
