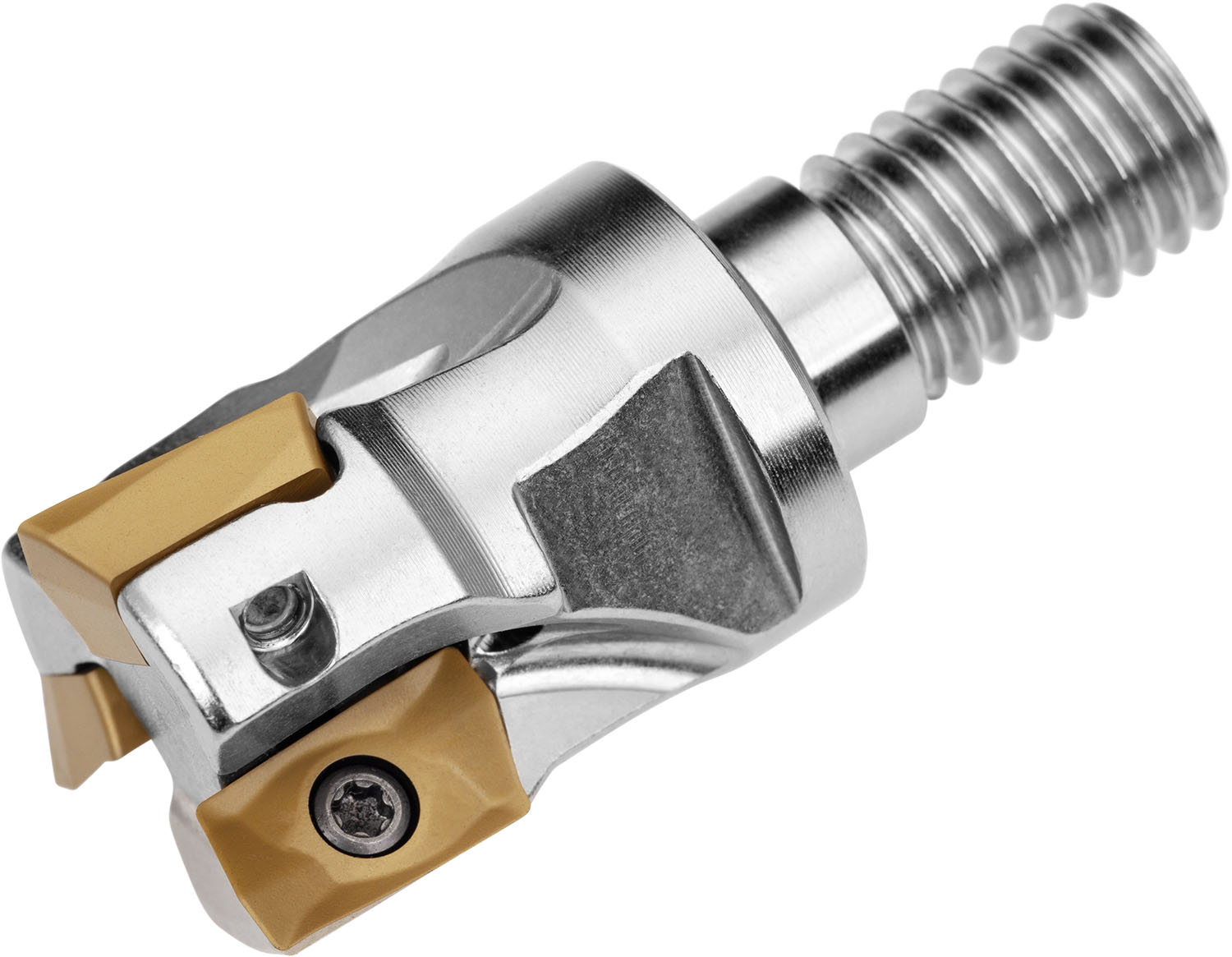

Shoulder mill with positve/negative geometry which utilises 3 off ADMX 11T3.. or ADEX 11T3.. single-sided inserts, cutting diameter 1.000'' with 90° approach angle and M12 threaded shank for standard modular tool-holders, 1.378'' protrusion length, through coolant for copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of .354''.
Product Specifications
| EDP Number | 6790706 |
| Peripheral Effective Cutting Edge Count | 3 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | 5 |
| Radial Rake Angle | -10.2 |
| Connection Diameter (mm) | 12.5 mm |
| Connection Diameter (Inch) | 0.492" |
| Cutting Diameter (mm) | 25.4 mm |
| Cutting Diameter (Inch) | 1" |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Functional Length (Inch) | 1.378" |
| Thread Diameter Size | M12 |
