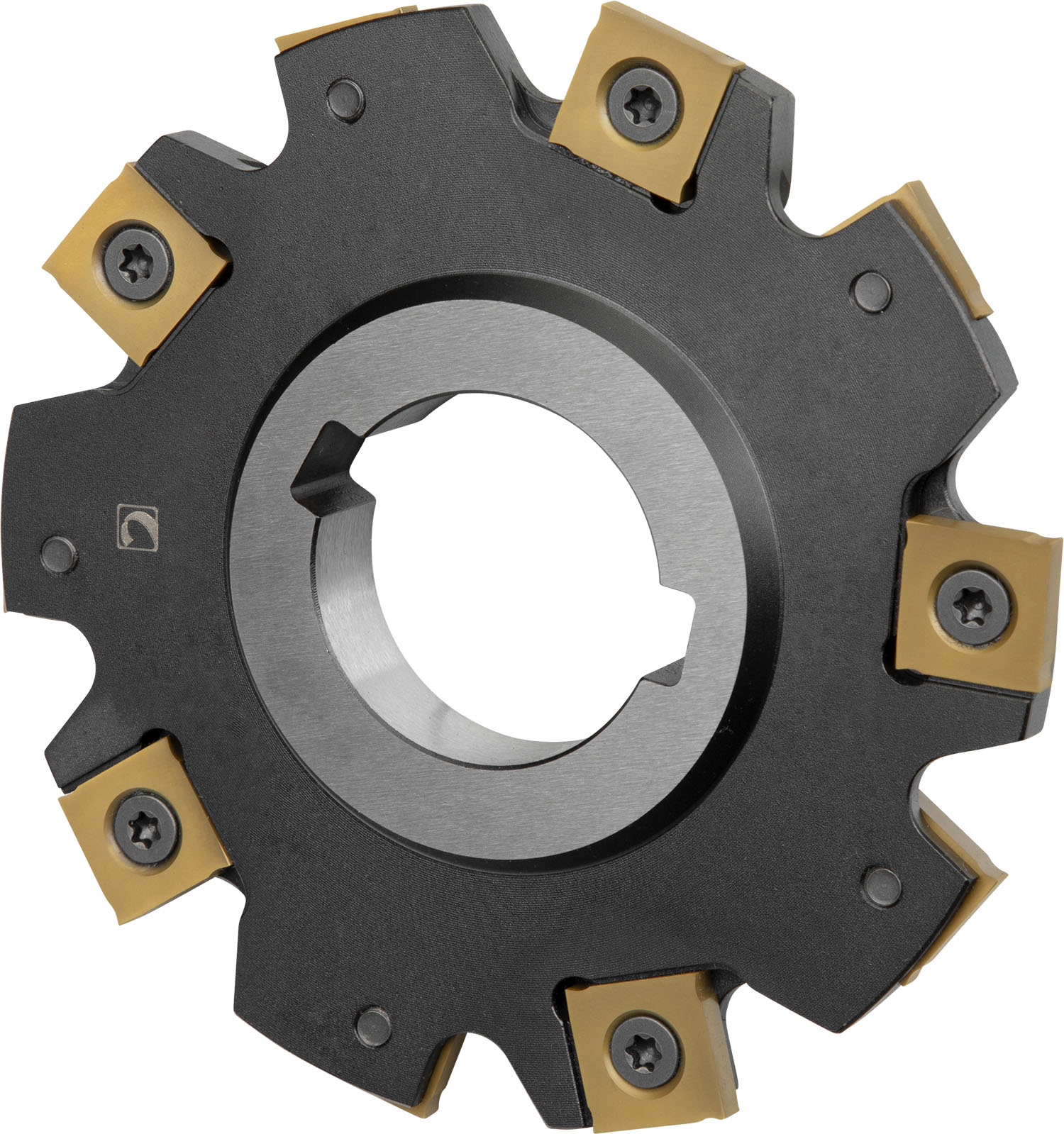

Disc mill with positve/negative geometry which utilises 10 off SNHQ 1203.. double-sided inserts, cutting diameter 100 mm with 90 Degree approach angle and 32 mm connection bore according to DIN 8030, for deep slot milling with a width of cut of 6 mm.
Product Specifications
| EDP Number | 6758373 |
| Peripheral Effective Cutting Edge Count | 10 |
| Insert Index Count | 10 |
| Cutting width (mm) | 6 mm |
| Max Cutting Depth (mm) | 24 mm |
| Axial Rake Angle | -0.5 |
| Radial Rake Angle | 2.5 |
| Max Rotational Speed | 7500 |
| Connection Bore Diameter (mm) | 32 mm |
| Hub Diameter (mm) | 48 mm |
| Cutting Diameter (mm) | 100 mm |
| Cutting Diameter (Inch) | 3.937" |
| Number of Peripheral Edges in The Tool | 10 |
| Country of origin | Czech Republic |
