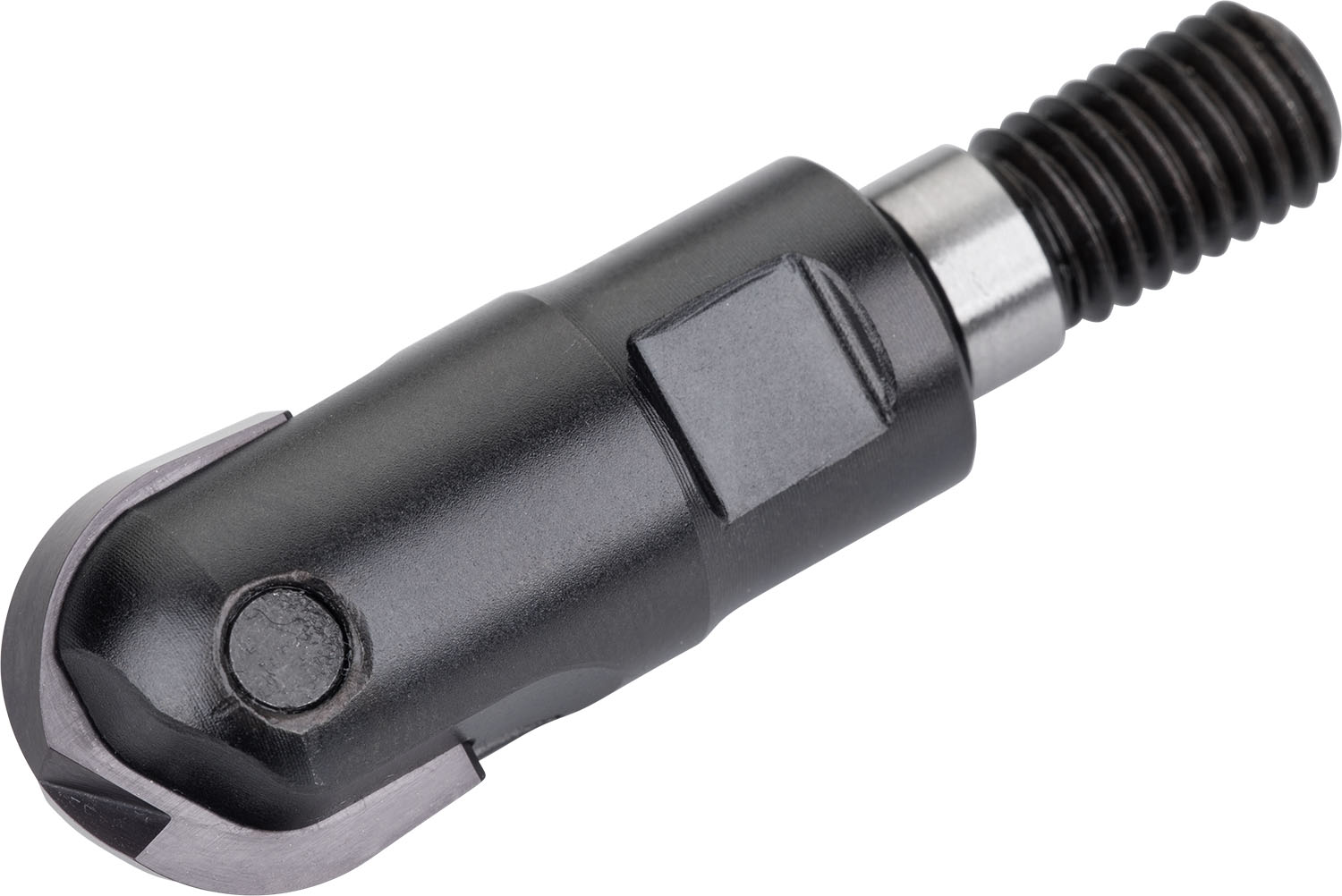

Copy end mill which utilises 1 off RC 10 or RC 10-F single-sided insert, cutting diameter 10 mm with M6 threaded shank for standard modular tool-holders, 30 mm protrusion length for copy milling with a maximum depth of cut of 0.6-3.2 mm.
Product Specifications
| EDP Number | 6757580 |
| Peripheral Effective Cutting Edge Count | 2 |
| Insert Index Count | 1 |
| Connection Diameter (mm) | 6.5 mm |
| Connection Diameter (Inch) | 0.256" |
| Max Cutting Diameter (mm) | 10 mm |
| Overall Length (mm) | 150 mm |
| Overall Length (Inch) | 5.906" |
| Functional Length (mm) | 30 mm |
| Thread Diameter Size | M6 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
interval quantity:
1
