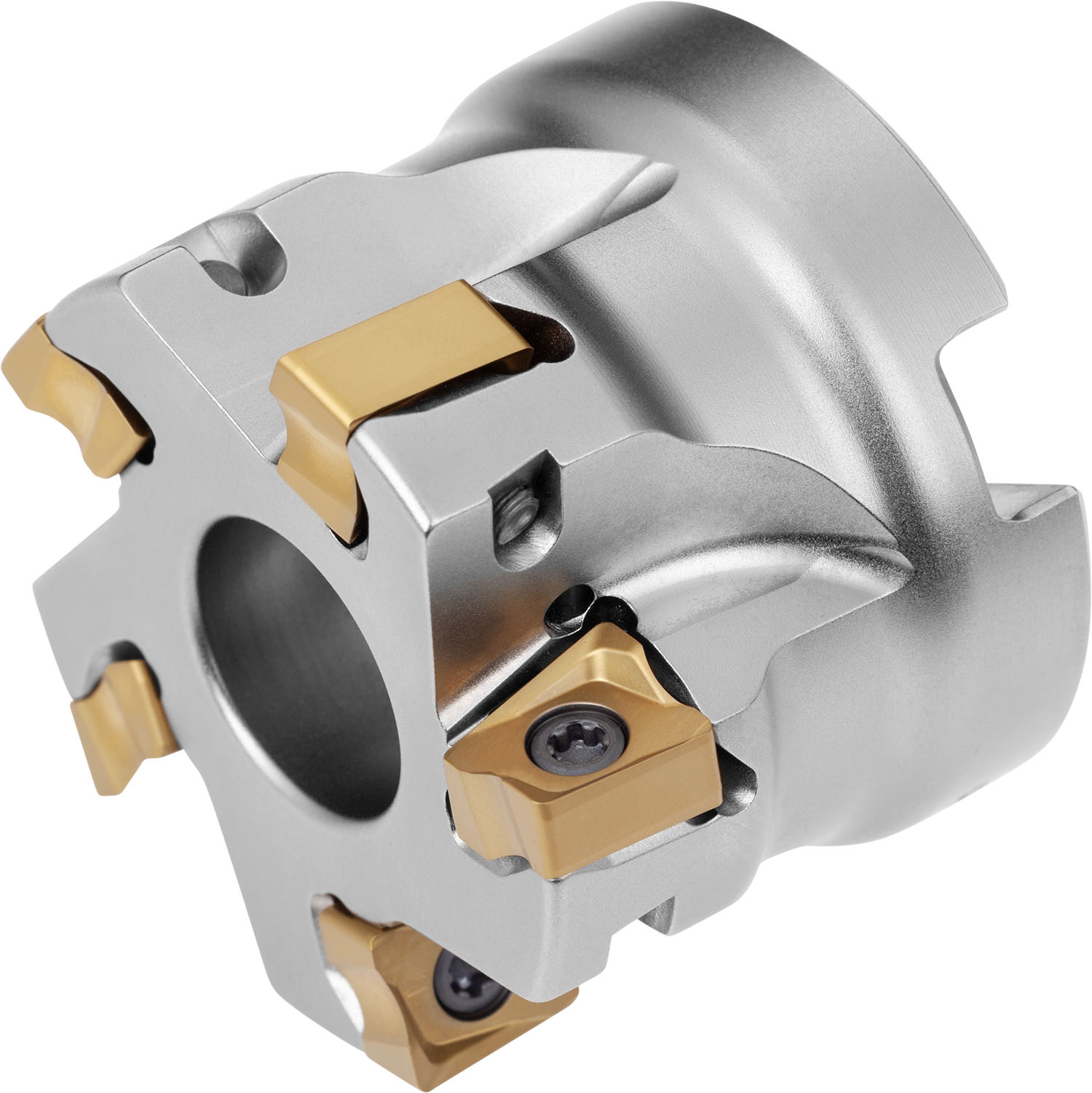

Shoulder mill with double negative geometry which utilises 7 off LNGX 1205.. or LNGU 1205.. double-sided inserts, cutting diameter 125 mm with 90 Degree approach angle and 40 mm connection bore according to DIN 8030-A, 63 mm protrusion length, through coolant and differential pitch for shallow shoulder milling, shallow slot milling and plunge milling with a maximum depth of cut of 9.0 mm.
Product Specifications
| EDP Number | 6798612 |
| Peripheral Effective Cutting Edge Count | 7 |
| Cutting Pitch Differential | 1 |
| Insert Index Count | 7 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | -6 |
| Radial Rake Angle | -14 |
| Max Rotational Speed | 8700 |
| Connection Diameter (mm) | 40 mm |
| Connection Diameter (Inch) | 1.575" |
| Counterbore Diameter Connection Bore (mm) | 56 mm |
| Keyway Width (mm) | 16.4 mm |
| Keyway Depth (mm) | 9 mm |
| Cutting Diameter (mm) | 125 mm |
| Cutting Diameter (Inch) | 4.921" |
| Functional Length (mm) | 63 mm |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Pramet
