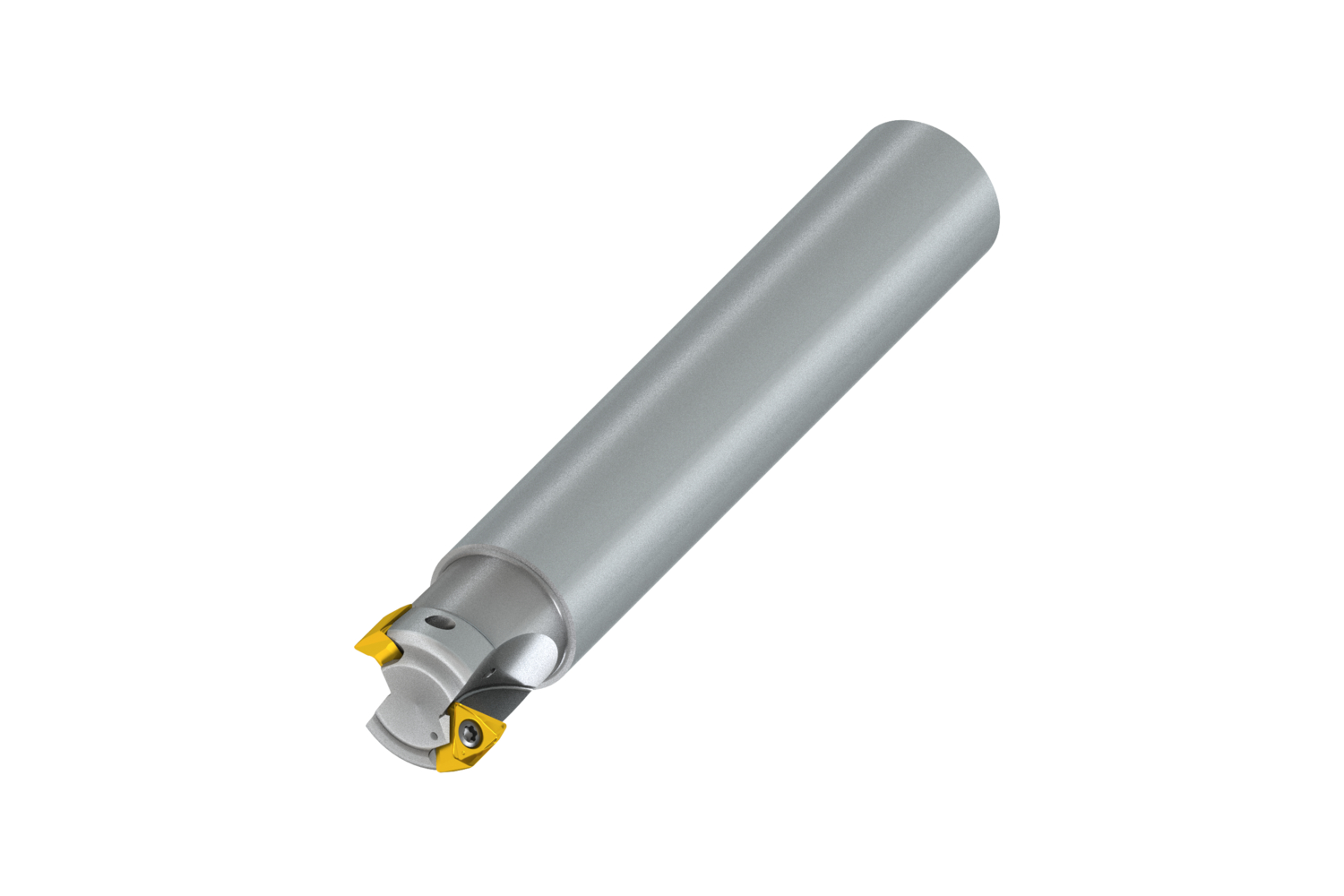

Shoulder face mill with double negative geometry which utilises 2 of TNGX 1606.. double-sided inserts, cutting diameter 1.250" with 90° approach angle and parallel shank according to DIN 1835A, , through coolant for face milling, shallow shoulder milling, shallow slot milling and helical milling in pre-machined holes.
Product Specifications
| EDP Number | 8021685 |
| Peripheral Effective Cutting Edge Count | 2 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | -9.5 |
| Radial Rake Angle | -16 |
| Connection Diameter (mm) | 32 mm |
| Connection Diameter (Inch) | 1.26" |
| Cutting Diameter (mm) | 31.75 mm |
| Cutting Diameter (Inch) | 1.25" |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Usable Length (Inch) | 1.339 mm |
