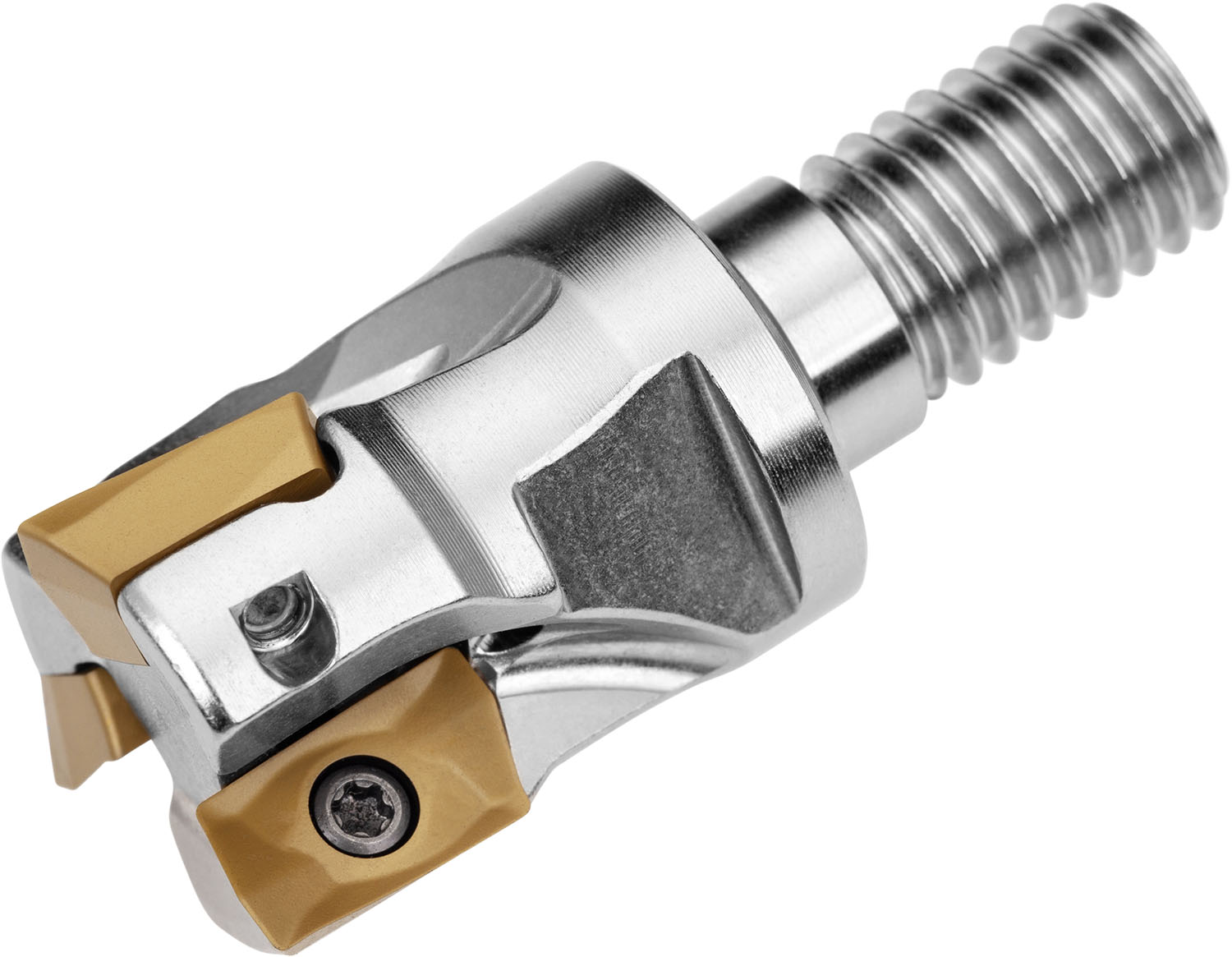

Shoulder mill with positve/negative geometry which utilises 4 off ADMX 11T3.. or ADEX 11T3.. single-sided inserts, cutting diameter 1.250'' with 90 Degree approach angle and M16 threaded shank for standard modular tool-holders, 1.693'' protrusion length, through coolant for copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of .354''.
Product Specifications
| EDP Number | 6790713 |
| Peripheral Effective Cutting Edge Count | 4 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | 8 |
| Radial Rake Angle | -9 |
| Connection Diameter (mm) | 17 mm |
| Connection Diameter (Inch) | 0.669" |
| Cutting Diameter (mm) | 31.8 mm |
| Cutting Diameter (Inch) | 1.25" |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Functional Length (Inch) | 1.693" |
| Thread Diameter Size | M16 |
| Country of origin | Czech Republic |
