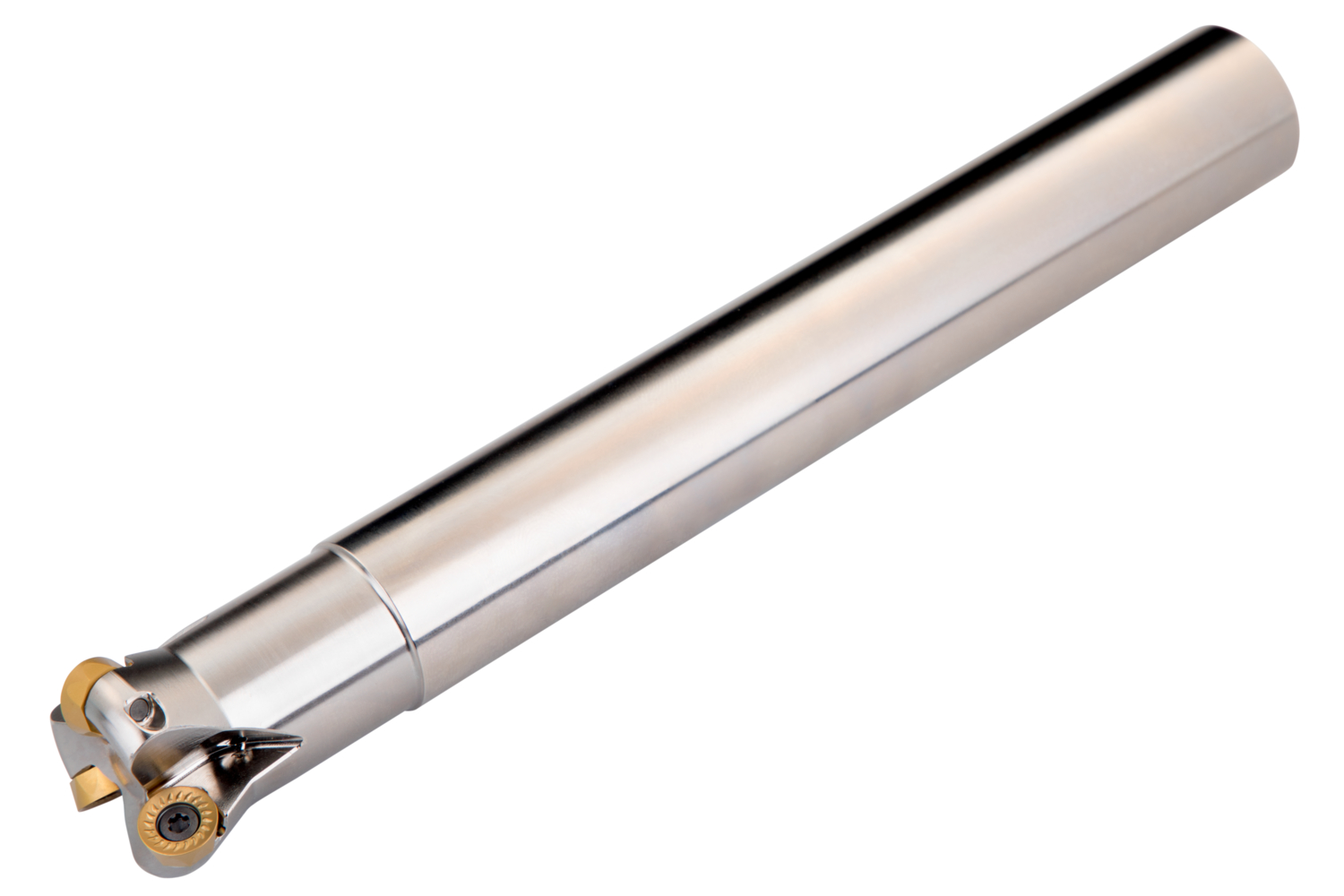

Copy face mill with double negative geometry which utilises 3 off RCMT 10T3MO.. single-sided inserts, cutting diameter 1.250'' with 1.000'' parallel shank according to DIN 1835A, 7.900'' overall length, through coolant for face milling, copy milling, ramping, helical milling and plunge milling with a maximum depth of cut of .197''.
Product Specifications
| EDP Number | 7455360 |
| Peripheral Effective Cutting Edge Count | 3 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | -7 |
| Radial Rake Angle | -2.6 |
| Max Rotational Speed | 18500 |
| Connection Diameter (mm) | 25.4 mm |
| Connection Diameter (Inch) | 1" |
| Cutting Diameter (mm) | 21.7 mm |
| Cutting Diameter (Inch) | 0.856" |
| Max Cutting Diameter (Inch) | 1.25" |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Usable Length (Inch) | 1.654 mm |
