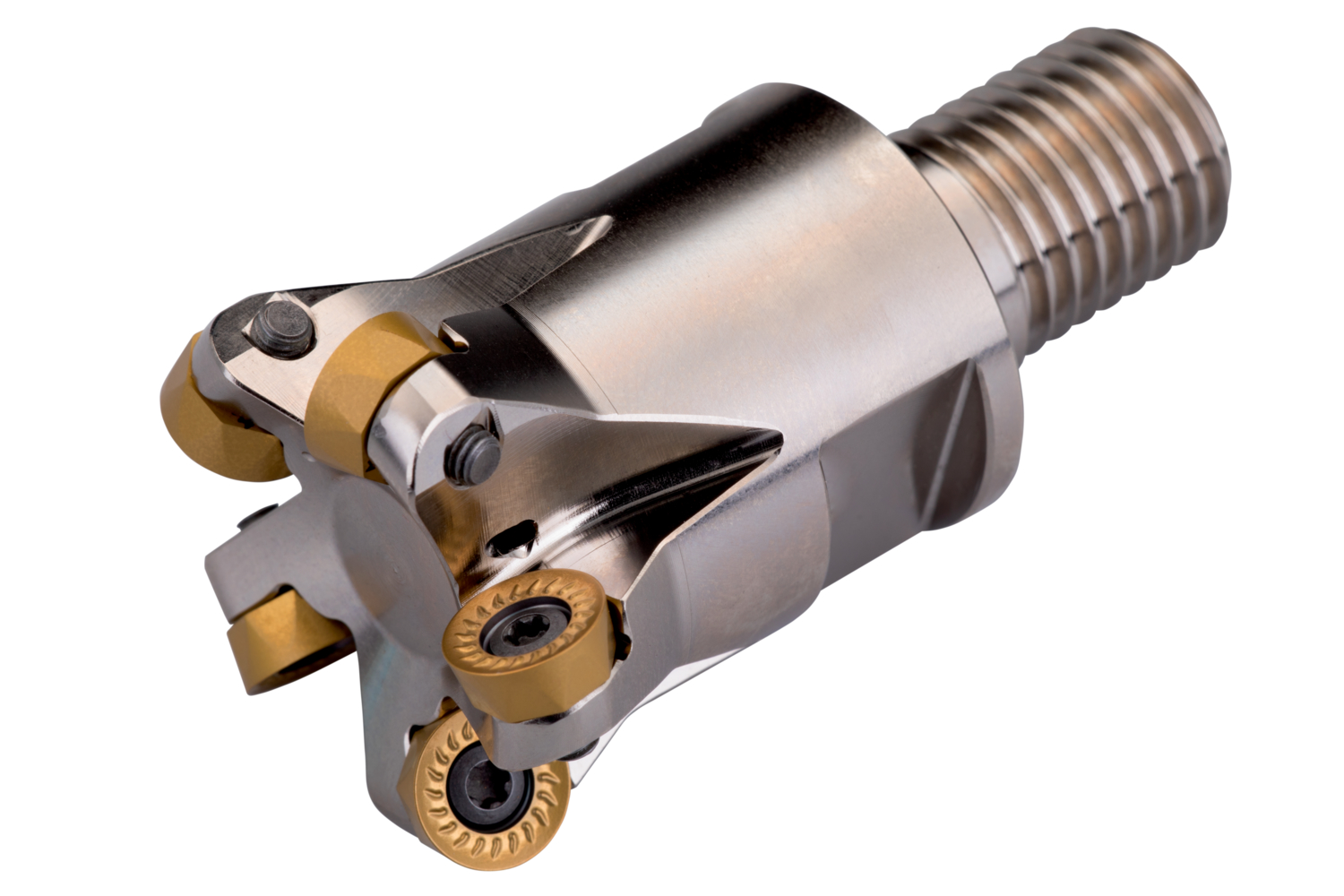

Pramet 7455366 | 28.1 mm Diameter x 1.654 mm Functional Length Indexable Copy Face Mill

SKU: 23144614 Weight: 0.97 LBS Minimum Purchase: 1 unit
UPC:
$289.00 $231.20
(You save $57.80)
Shipping: Calculated at Checkout

About This Item

Copy face mill with double negative geometry which utilises 4 off RCMT 10T3MO.. single-sided inserts, cutting diameter 1.500'' with M16 threaded shank for standard modular tool-holders, 1.654'' protrusion length, through coolant for face milling, copy milling, ramping, helical milling and plunge milling with a maximum depth of cut of .197''.

Product Specifications
EDP Number7455366
Peripheral Effective Cutting Edge Count4
Coolant Supply Property1
Axial Rake Angle-7
Radial Rake Angle-2.1
Max Rotational Speed16500
Connection Diameter (mm)17 mm
Connection Diameter (Inch)0.669"
Hub Diameter (Inch)1.142"
Cutting Diameter (mm)28.1 mm
Cutting Diameter (Inch)1.106"
Max Cutting Diameter (Inch)1.5"
Overall Length (mm)
Overall Length (Inch)
Functional Length (Inch)1.654"
Thread Diameter SizeM16
Country of originCzech Republic
