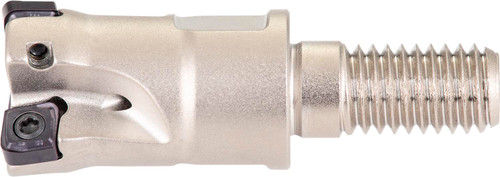

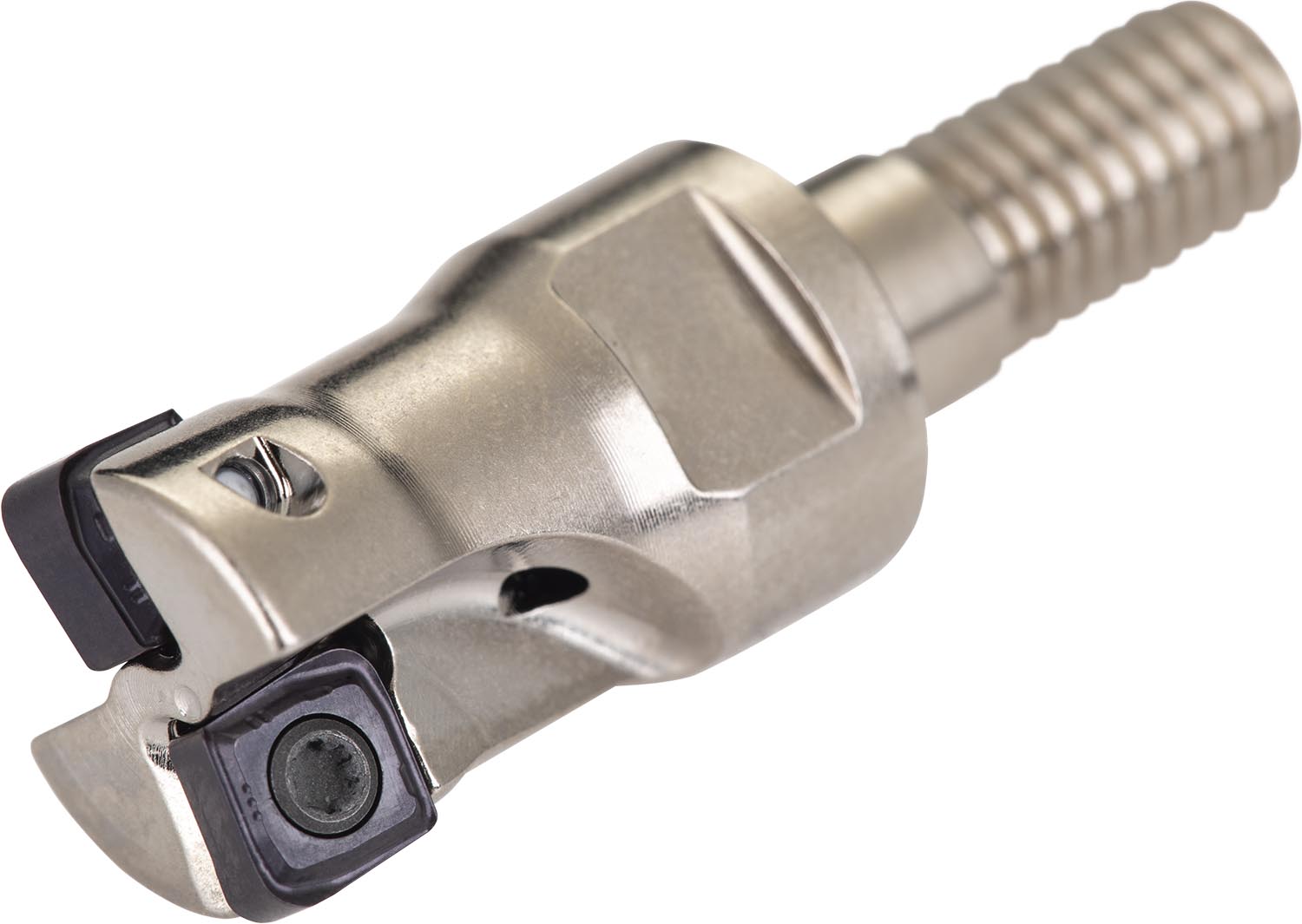

Copy face mill with double negative geometry which utilises 2 off CNHX 0502.. double-sided inserts, cutting diameter 12 mm with 93 Degree approach angle and M6 threaded shank for standard modular tool-holders, 20 mm protrusion length, through coolant for face milling, copy milling, shallow shoulder milling, deep shoulder milling, ramping and plunge milling with a maximum depth of cut of 0.5 mm.
Product Specifications
| EDP Number | 7636620 |
| Peripheral Effective Cutting Edge Count | 2 |
| Insert Index Count | 2 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | -8 |
| Radial Rake Angle | -15 |
| Connection Diameter (mm) | 6.5 mm |
| Connection Diameter (Inch) | 0.256" |
| Cutting Diameter (mm) | 12 mm |
| Cutting Diameter (Inch) | 0.472" |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Functional Length (mm) | 20 mm |
| Thread Diameter Size | M6 |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Pramet
