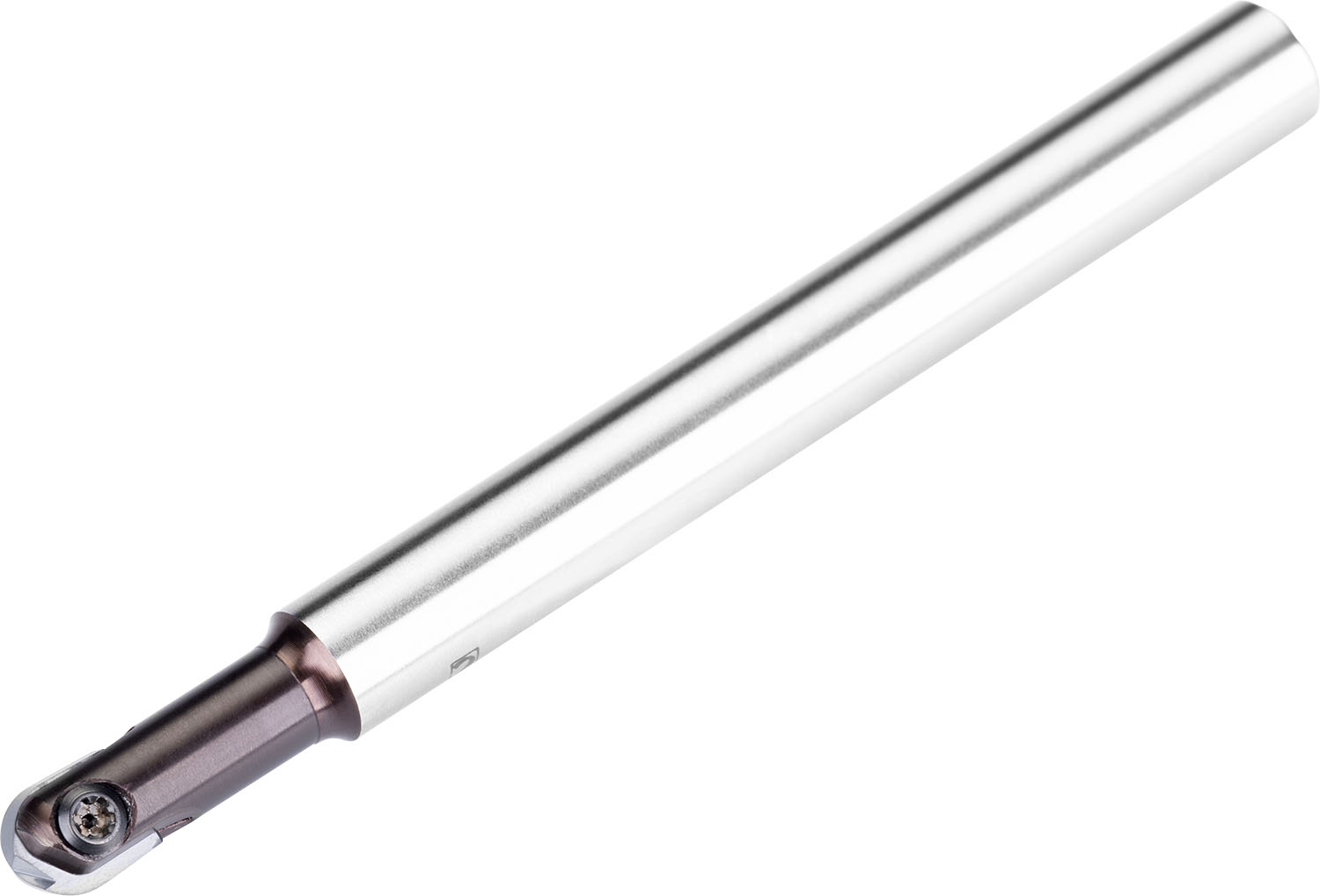

Copy end mill which utilises 1 off RC 12, RC 12-F, LC 12..-CH or LC 12..-RE single-sided insert, cutting diameter 12 mm with 12 mm parallel shank according to DIN 1835A, 30 mm functional and 130 mm overall length for copy milling with a maximum depth of cut of 0.6-3.2 mm.
Product Specifications
| EDP Number | 6756692 |
| Peripheral Effective Cutting Edge Count | 2 |
| Insert Index Count | 1 |
| Max Rotational Speed | 35000 |
| Connection Diameter (mm) | 12 mm |
| Connection Diameter (Inch) | 0.472" |
| Max Cutting Diameter (mm) | 12 mm |
| Body Diameter (mm) | 10.5 mm |
| Body Diameter (Inch) | 0.413" |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Usable Length (mm) | 30 mm |
| Country of origin | Czech Republic |
