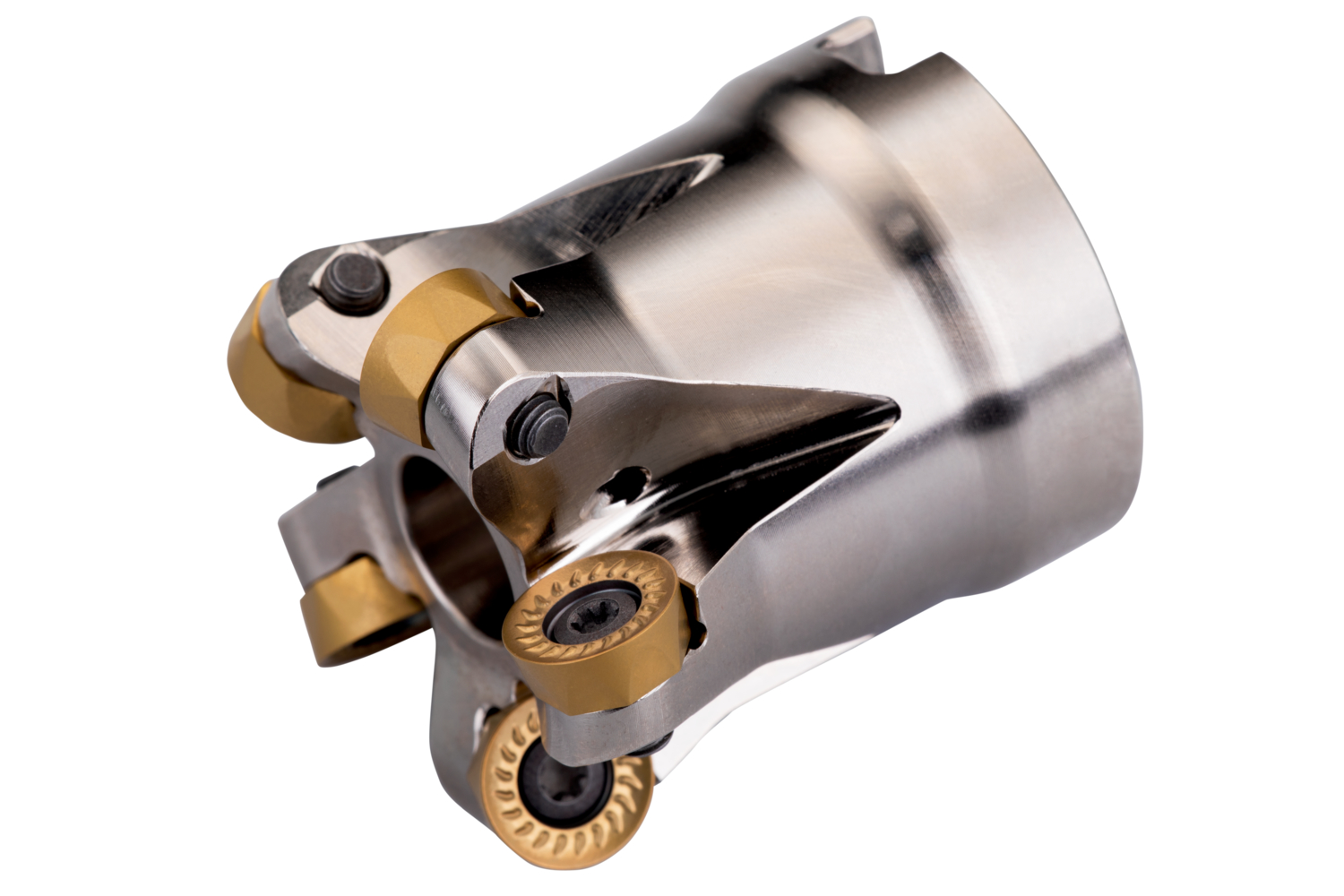

Copy face mill with double negative geometry which utilises 5 off RCMT 10T3MO.. single-sided inserts, cutting diameter 1.500'' with .500'' connection bore according to DIN 8030-A, 1.575'' protrusion length, through coolant for face milling, copy milling, ramping, helical milling and plunge milling with a maximum depth of cut of .197''.
Product Specifications
| EDP Number | 7455508 |
| Peripheral Effective Cutting Edge Count | 5 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | -7 |
| Radial Rake Angle | -2.2 |
| Max Rotational Speed | 16500 |
| Connection Diameter (mm) | 12.7 mm |
| Connection Diameter (Inch) | 0.5" |
| Counterbore Diameter Connection Bore (Inch) | 0.433" |
| Keyway Width (Inch) | 0.258" |
| Keyway Depth (Inch) | 0.165" |
| Cutting Diameter (mm) | 28.1 mm |
| Cutting Diameter (Inch) | 1.106" |
| Max Cutting Diameter (Inch) | 1.5" |
| Functional Length (Inch) | 1.575" |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Pramet
interval quantity:
1
