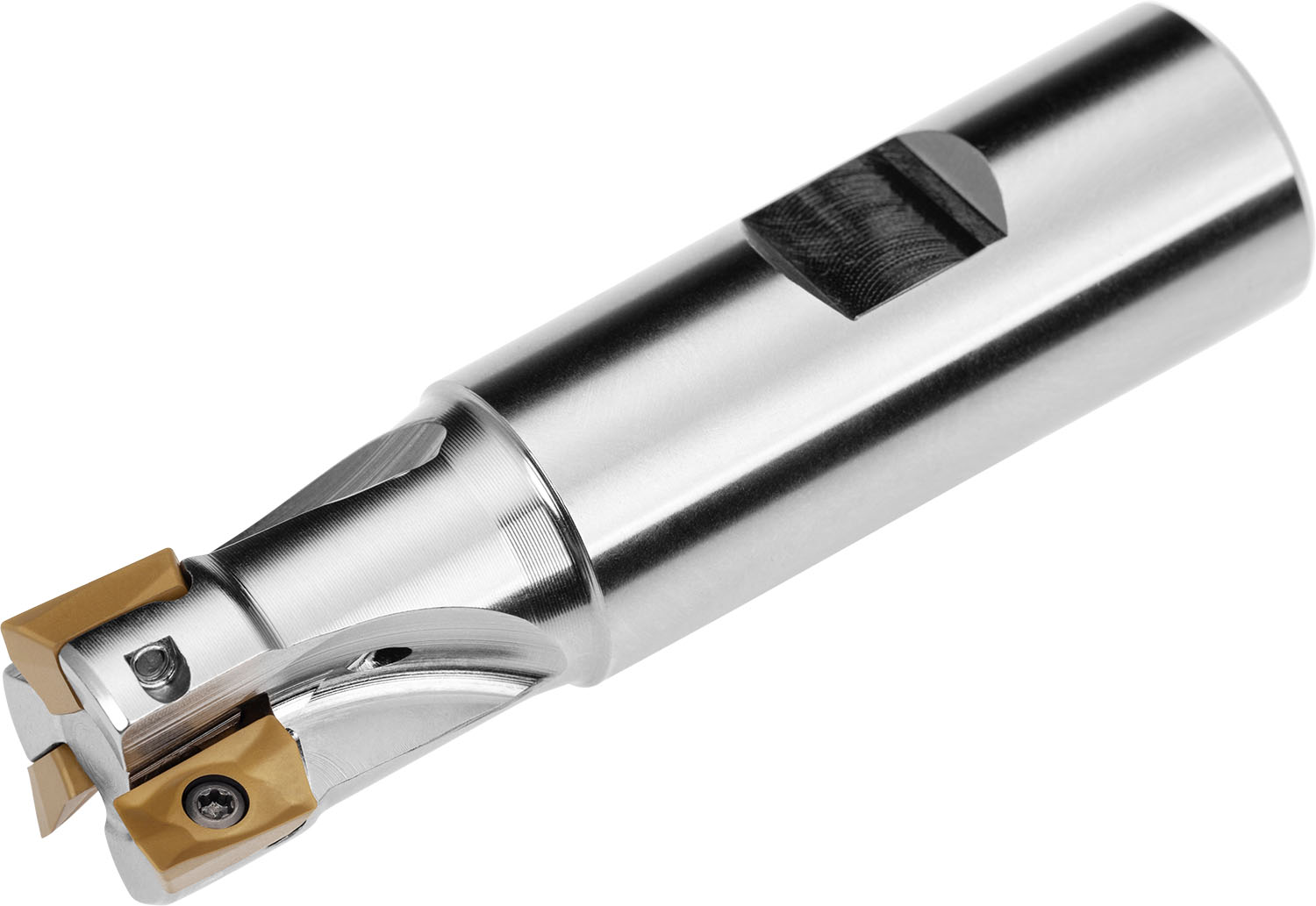

Shoulder mill with positve/negative geometry which utilises 2 off ADMX 11T3.. or ADEX 11T3.. single-sided inserts, cutting diameter 16 mm with 90 Degree approach angle and 16 mm Weldon shank according to DIN 1835B, 27 mm functional and 75 mm overall length, through coolant for copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 9.0 mm.
Product Specifications
| EDP Number | 6760196 |
| Peripheral Effective Cutting Edge Count | 2 |
| Insert Index Count | 2 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | 4 |
| Radial Rake Angle | -12.8 |
| Max Rotational Speed | 30100 |
| Connection Diameter (mm) | 16 mm |
| Connection Diameter (Inch) | 0.63" |
| Cutting Diameter (mm) | 16 mm |
| Cutting Diameter (Inch) | 0.63" |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Max Usable Length (mm) | 27 mm |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Pramet
