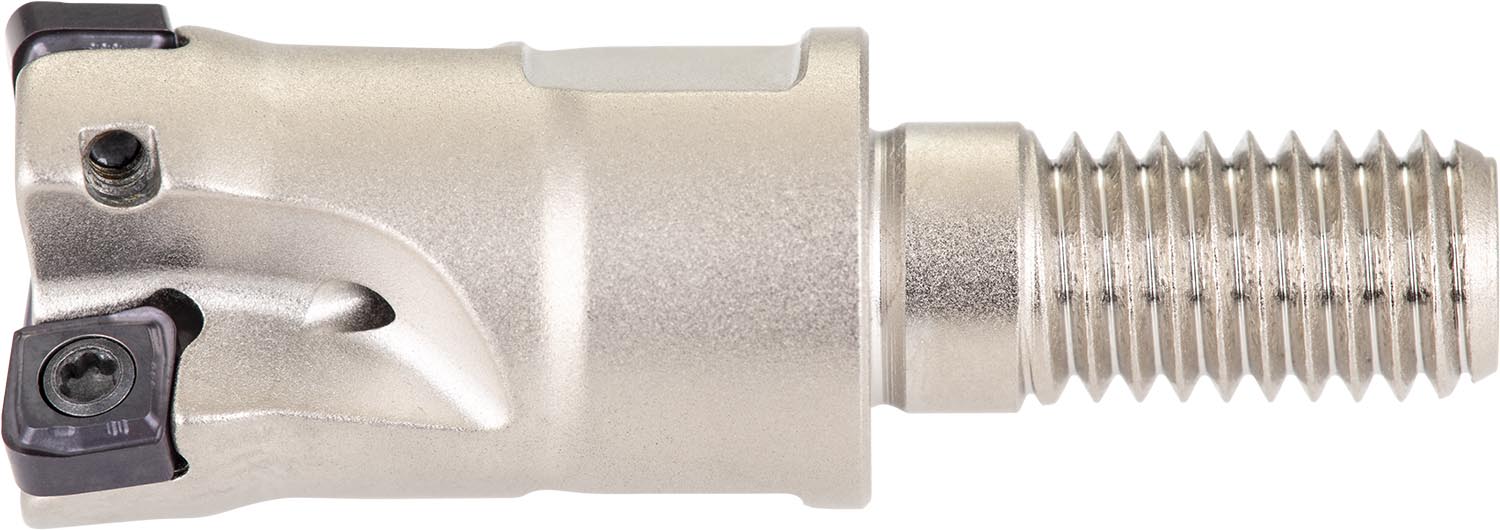

Copy face mill with double negative geometry which utilises 3 off CNHX 0502.. double-sided inserts, cutting diameter 16 mm with 93° approach angle and M8 threaded shank for standard modular tool-holders, 25 mm protrusion length, through coolant for face milling, copy milling, shallow shoulder milling, deep shoulder milling, ramping and plunge milling with a maximum depth of cut of 0.5 mm.
Product Specifications
| EDP Number | 7636621 |
| Peripheral Effective Cutting Edge Count | 3 |
| Insert Index Count | 3 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | -7.8 |
| Radial Rake Angle | -13.5 |
| Connection Diameter (mm) | 8.5 mm |
| Connection Diameter (Inch) | 0.335" |
| Cutting Diameter (mm) | 16 mm |
| Cutting Diameter (Inch) | 0.63" |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Functional Length (mm) | 25 mm |
| Thread Diameter Size | M8 |
