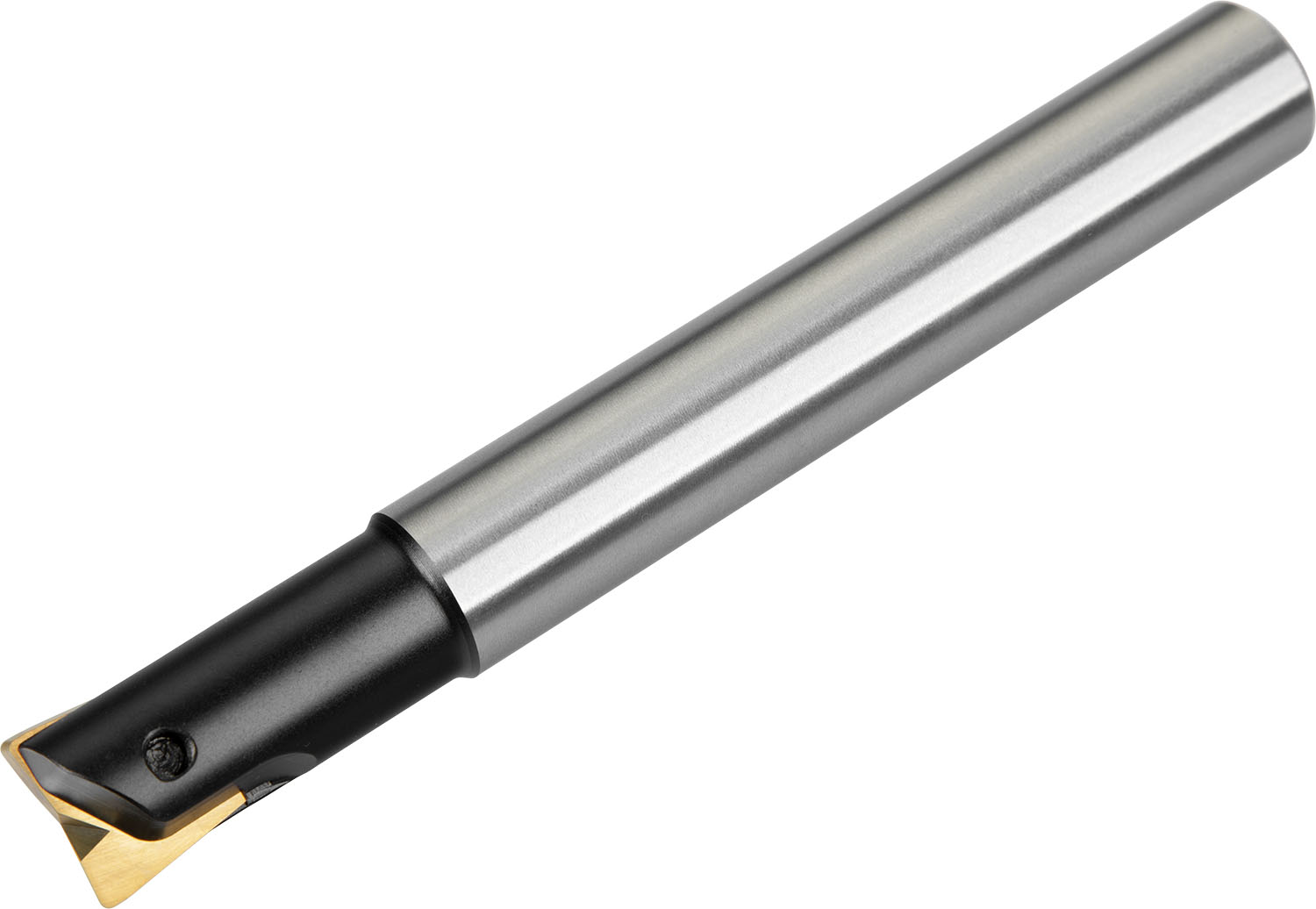

Copy end mill which utilises 1 off LC 16-KP or LC 16-KPF single-sided insert, cutting diameter 16 mm with 16 mm parallel shank according to DIN 1835A, 35 mm functional and 140 mm overall length for copy milling with a maximum depth of cut of 1.0-3.0 mm.
Product Specifications
| EDP Number | 6756698 |
| Peripheral Effective Cutting Edge Count | 2 |
| Insert Index Count | 1 |
| Max Rotational Speed | 22000 |
| Connection Diameter (mm) | 16 mm |
| Connection Diameter (Inch) | 0.63" |
| Cutting Diameter (mm) | 16 mm |
| Cutting Diameter (Inch) | 0.63" |
| Body Diameter (mm) | 14 mm |
| Body Diameter (Inch) | 0.551" |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Usable Length (mm) | 35 mm |
| Country of origin | Czech Republic |
