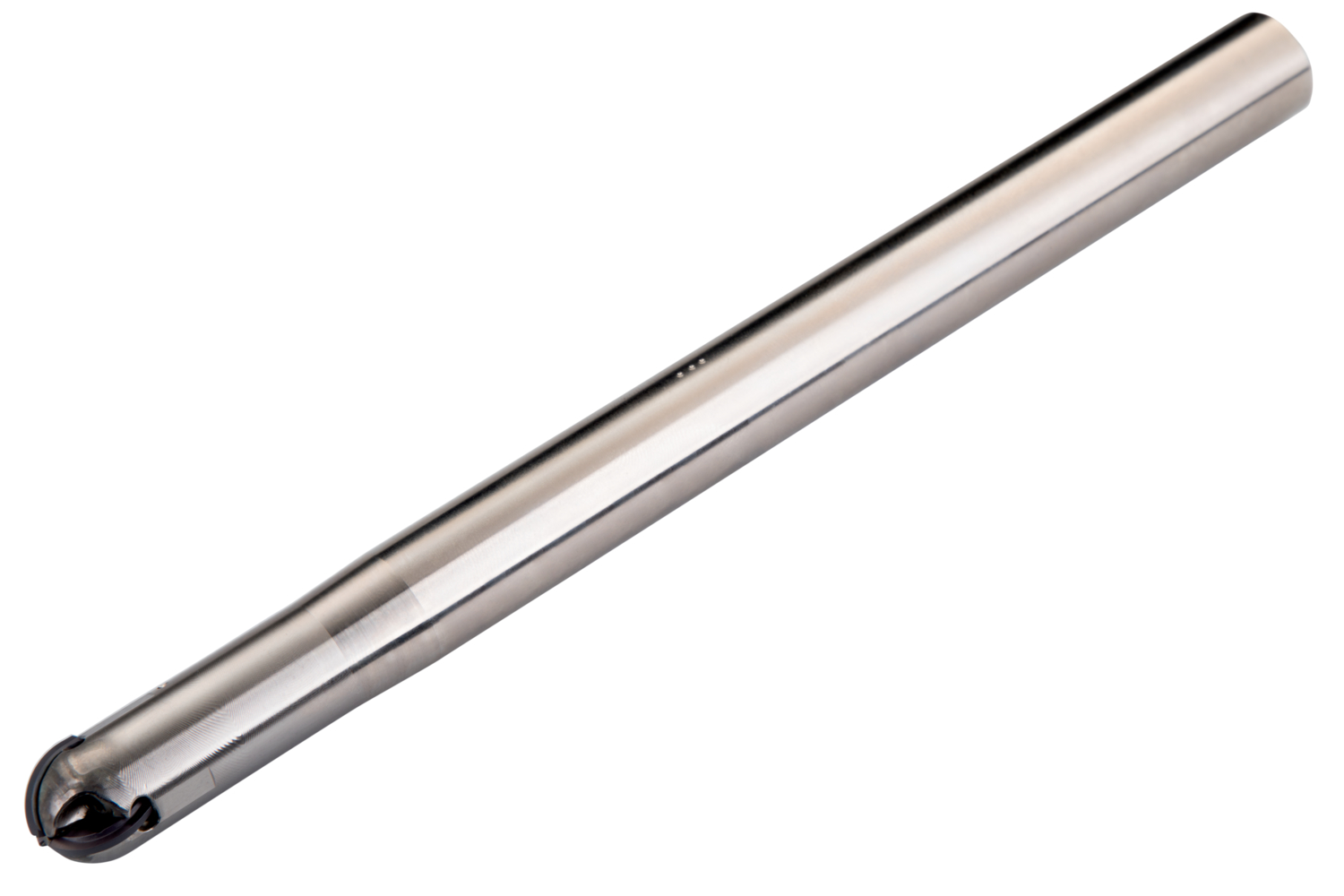

Copy end mill with double negative geometry which utilises 3 off XP 16.. single-sided inserts, cutting diameter 16 mm with 16 mm parallel shank according to DIN 1835A, 50 mm functional and 200 mm overall length for copy milling with a maximum depth of cut of 8 mm.
Product Specifications
| EDP Number | 6761723 |
| Peripheral Effective Cutting Edge Count | 3 |
| Insert Index Count | 3 |
| Maximum Depth of Cut (mm) | 8 mm |
| Axial Rake Angle | -5 |
| Radial Rake Angle | 0 |
| Max Rotational Speed | 22600 |
| Connection Diameter (mm) | 16 mm |
| Connection Diameter (Inch) | 0.63" |
| Max Cutting Diameter (mm) | 16 mm |
| Overall Length (mm) | 242 mm |
| Overall Length (Inch) | 9.528" |
| Usable Length (mm) | 50 mm |
