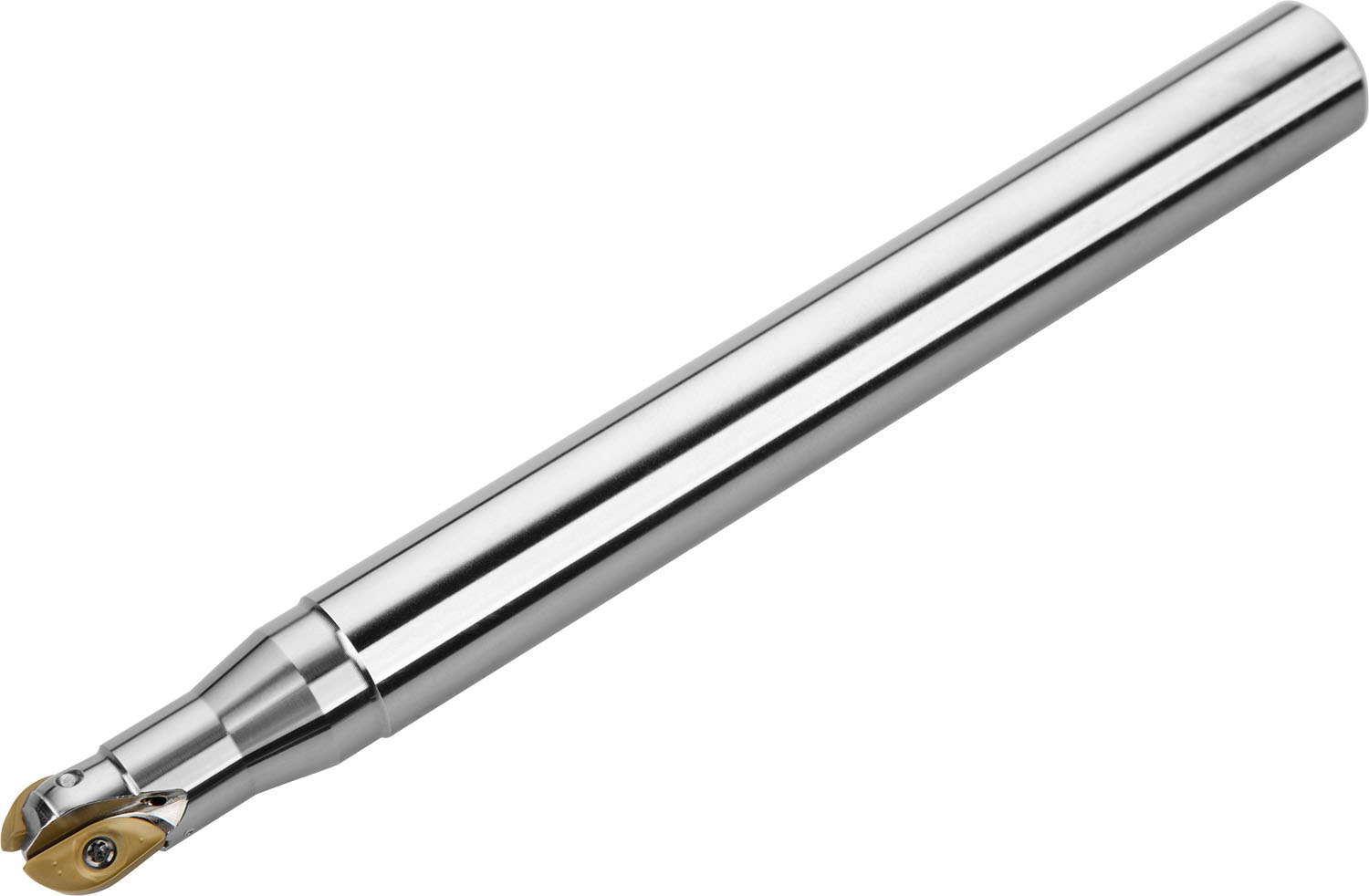

Copy end mill with double negative geometry which utilises 2 off ZP 16.. single-sided inserts, cutting diameter 16 mm with 16 mm parallel shank according to DIN 1835A, 40 mm functional and 160 mm overall length, through coolant for copy milling with a maximum depth of cut of 14,4 mm.
Product Specifications
| EDP Number | 7049116 |
| Peripheral Effective Cutting Edge Count | 2 |
| Insert Index Count | 2 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | -10 |
| Radial Rake Angle | 0 |
| Maximum Ramping Angle | 14.4 |
| Max Rotational Speed | 20000 |
| Connection Diameter (mm) | 16 mm |
| Connection Diameter (Inch) | 0.63" |
| Max Cutting Diameter (mm) | 16 mm |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Usable Length (mm) | 40 mm |
| Max Usable Length (mm) | 40 mm |
