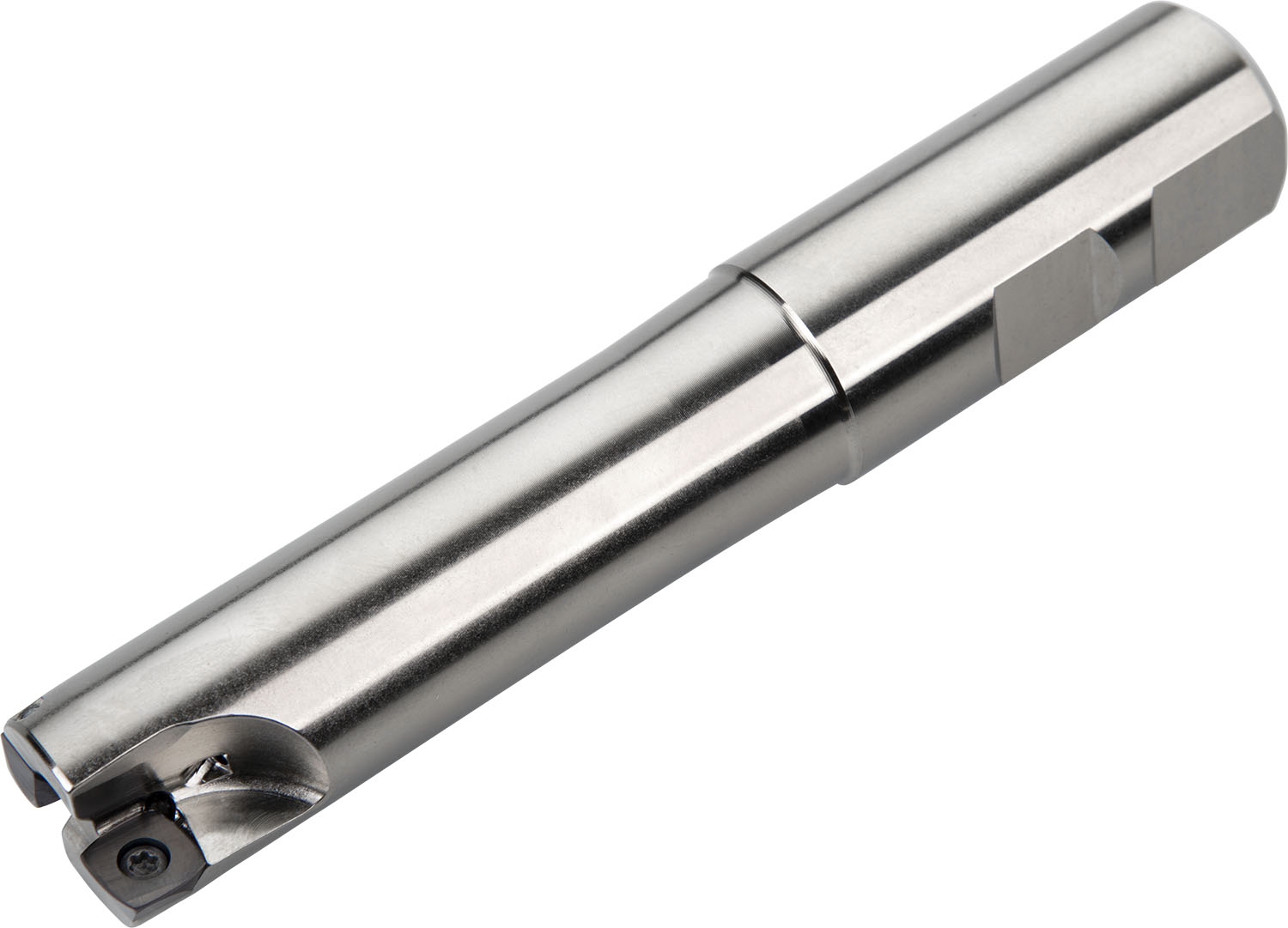

Name: Pramet 16N2R030E02-SSD09-A | 0.63" Diameter x 3.701" OAL Indexable Square-Shoulder End Mill
Brand: Pramet
SKU: 23144481
Price: 190.4 USD
Availability: InStock

Pramet 16N2R030E02-SSD09-A | 0.63" Diameter x 3.701" OAL Indexable Square-Shoulder End Mill

$238.00 $190.40

(You save $47.60)

Brand:

Pramet

interval quantity:

SKU:

23144481

UPC:

Weight:

0.33 LBS

Minimum Purchase:

1 unit

Shipping:

Calculated at Checkout

Features
Reviews
Other Details

Chamfer mill with double negative geometry which utilises 2 off SDEW 0903.. or SDEX 0903.. single-sided inserts, cutting diameter 16 to maximum 28 mm with 45 Degree approach angle and MT 2 morse taper shank according to DIN 228-1A, 94 mm overall length for chamfering with a maximum depth of cut of 8.0 mm.

Product Specifications

EDP Number	6757798
Peripheral Effective Cutting Edge Count	2
Insert Index Count	2
Axial Rake Angle	0
Radial Rake Angle	0
Max Rotational Speed	32200
Connection Size Code Machine Side	2
Cutting Diameter (mm)	16 mm
Max Cutting Diameter (mm)	28 mm
Cutting Diameter (Inch)	0.63"
Overall Length (mm)	102 mm
Overall Length (Inch)	4"
Functional Length (mm)	30 mm
Country of origin	Czech Republic
