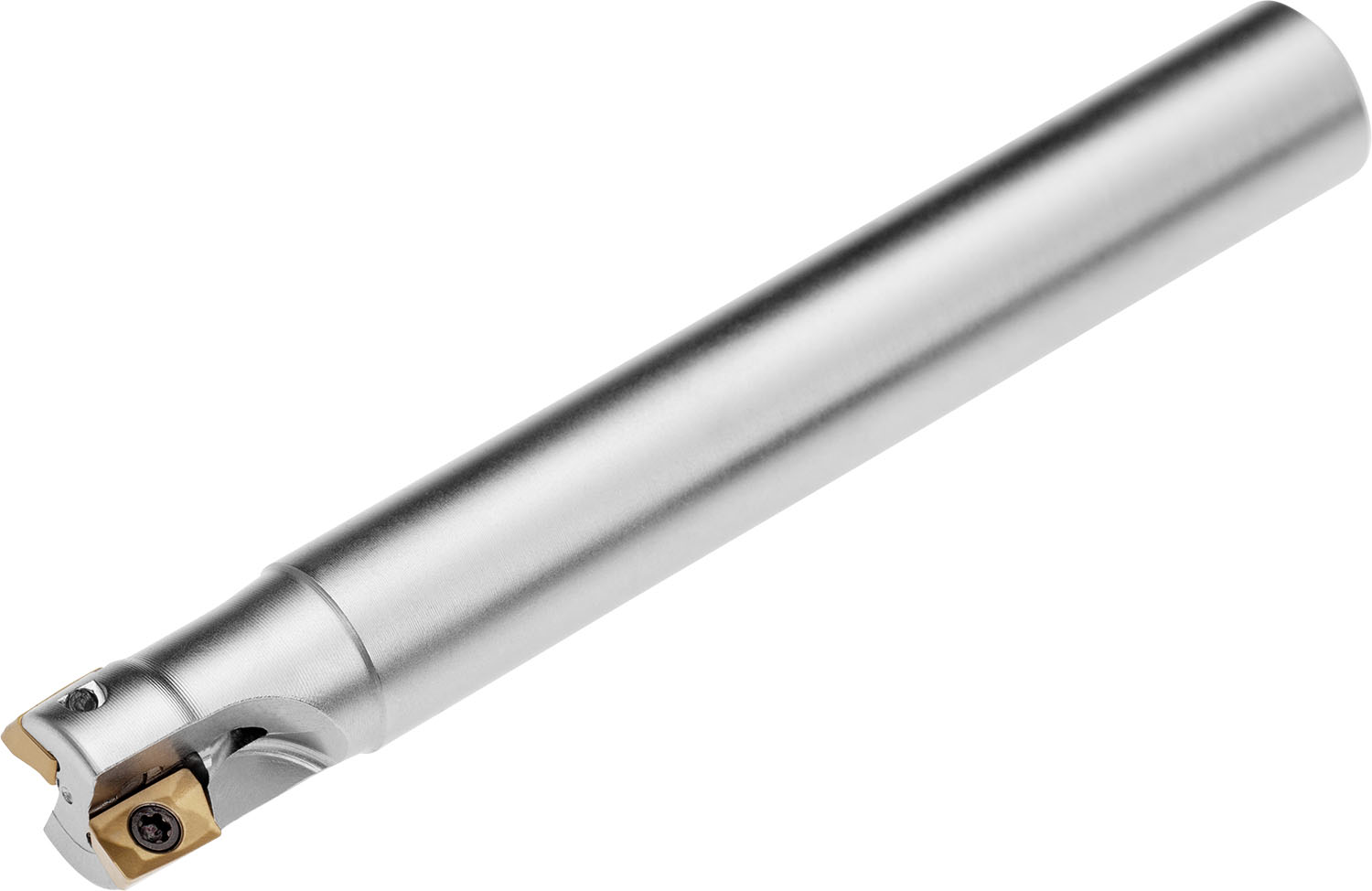

Shoulder mill with positve/negative geometry which utilises 4 off ADMX 0702.. or ADEX 0702.. single-sided inserts, cutting diameter 18 mm with 90° approach angle and 16 mm parallel shank according to DIN 1835A, 19 mm functional and 180 mm overall length, through coolant and differential pitch for shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 5.0 mm.
Product Specifications
| EDP Number | 6798640 |
| Peripheral Effective Cutting Edge Count | 4 |
| Cutting Pitch Differential | 1 |
| Insert Index Count | 4 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | 8 |
| Radial Rake Angle | -7.5 |
| Max Rotational Speed | 45900 |
| Connection Diameter (mm) | 16 mm |
| Connection Diameter (Inch) | 0.63" |
| Cutting Diameter (mm) | 18 mm |
| Cutting Diameter (Inch) | 0.709" |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Usable Length (mm) | 19 mm |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
