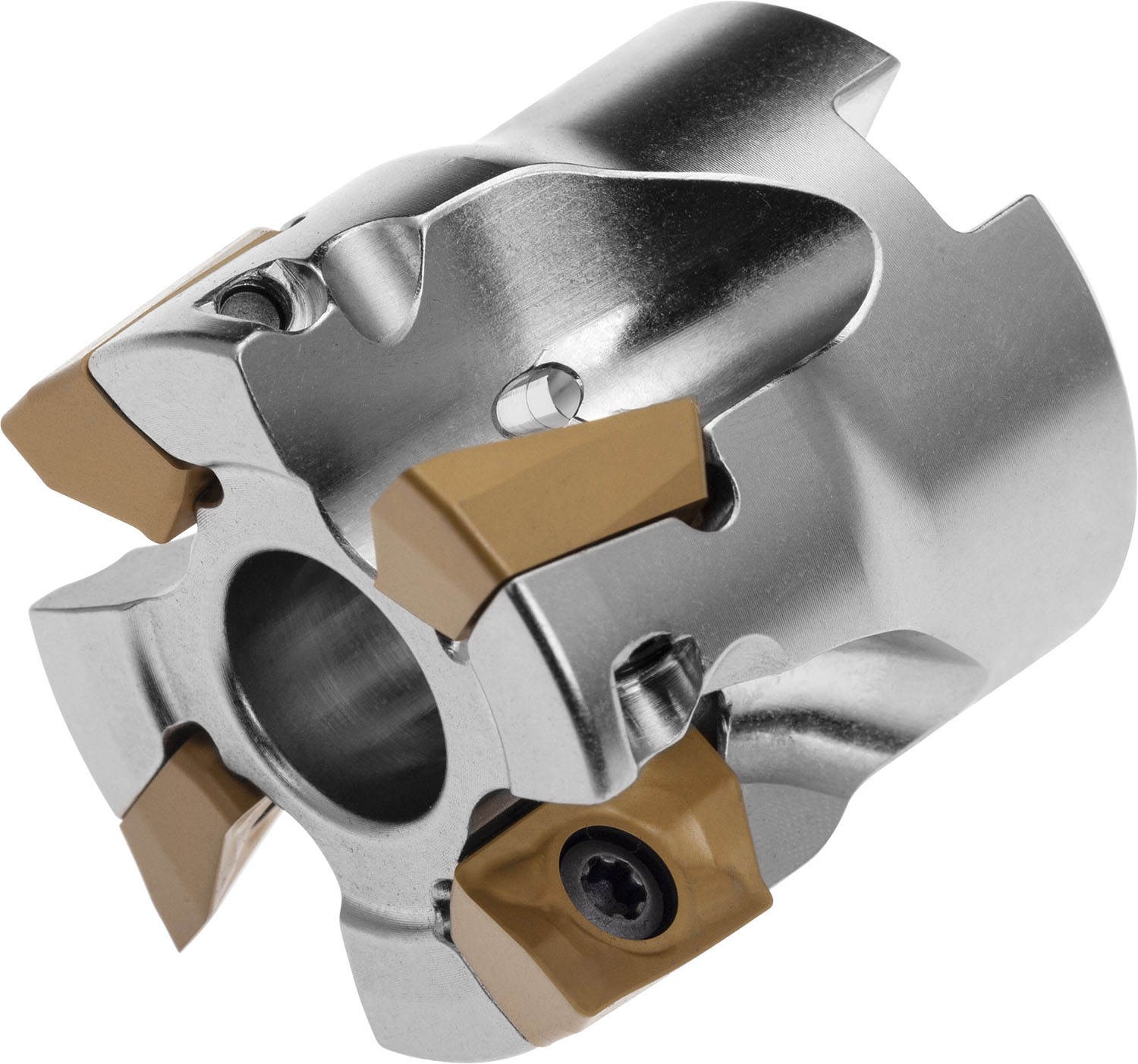

Shoulder mill with positve/negative geometry which utilises 3 off ADMX 1606.. or ADEX 1606.. single-sided inserts, cutting diameter 2.000'' with 90 Degree approach angle and .750'' connection bore according to DIN 8030-A, 1.575'' protrusion length, through coolant for copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of .512''.
Product Specifications
| EDP Number | 6798483 |
| Peripheral Effective Cutting Edge Count | 3 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | 11 |
| Radial Rake Angle | -7 |
| Max Rotational Speed | 13200 |
| Connection Diameter (mm) | 19.1 mm |
| Connection Diameter (Inch) | 0.75" |
| Counterbore Diameter Connection Bore (Inch) | 0.63" |
| Cutting Diameter (mm) | 50.8 mm |
| Cutting Diameter (Inch) | 2" |
| Functional Length (Inch) | 1.575" |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Related Products
Brand:
Pramet
interval quantity:
1
