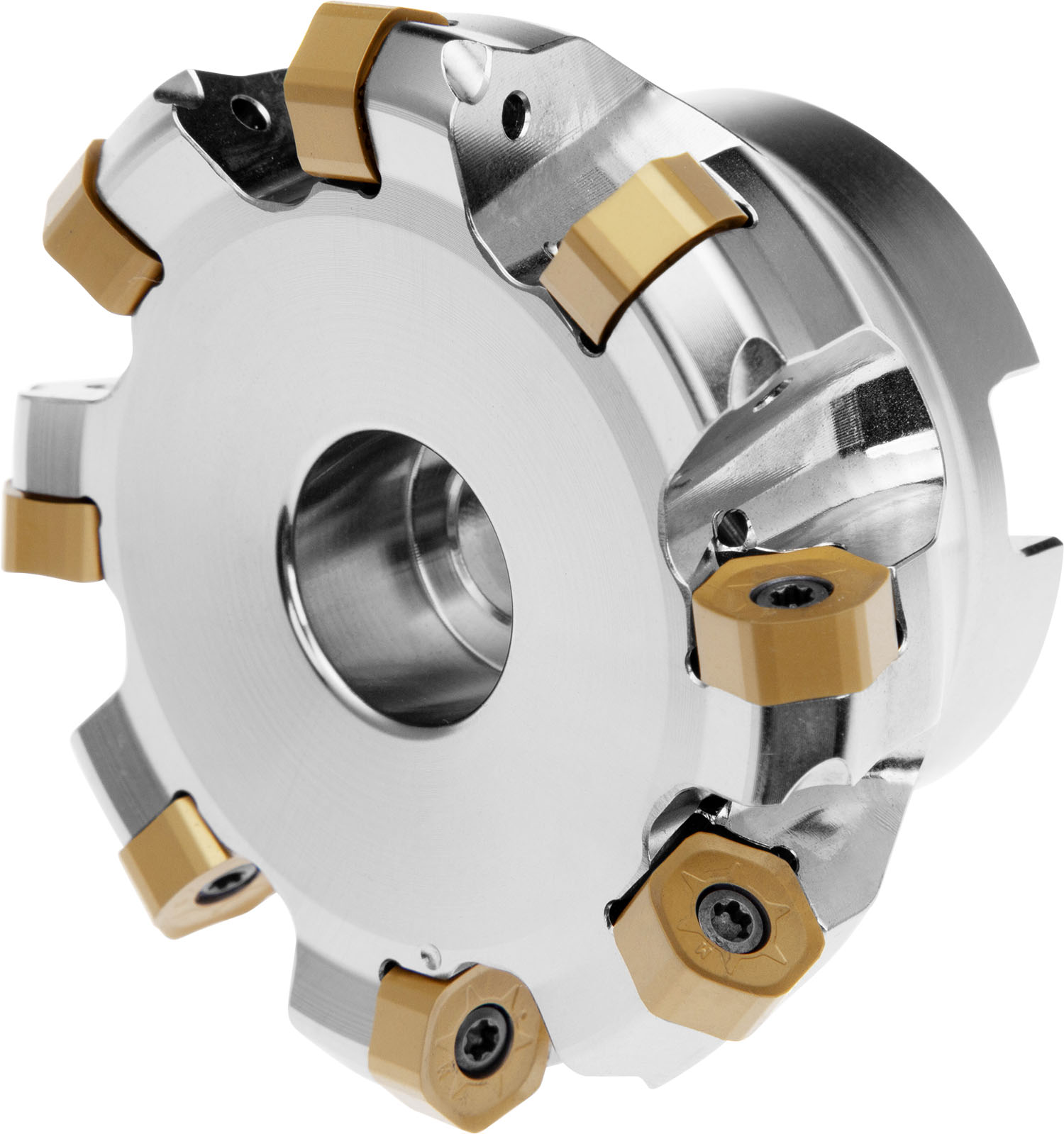

Face mill with double negative geometry which utilises 4 off HNGX 0604AN.. or XNGX 0604AN.. double-sided inserts, cutting diameter 2.000 to maximum 2.287'' with 45° approach angle and .750'' connection bore according to DIN 8030-A, 1.575'' protrusion length, through coolant for face milling, ramping, progressive plunge milling and chamfering with a maximum depth of cut of .118''.
Product Specifications
| EDP Number | 6792927 |
| Peripheral Effective Cutting Edge Count | 4 |
| Cutting Pitch Differential | 1 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | -7 |
| Radial Rake Angle | -7 |
| Max Rotational Speed | 12300 |
| Connection Diameter (mm) | 19.1 mm |
| Connection Diameter (Inch) | 0.75" |
| Counterbore Diameter Connection Bore (Inch) | 0.63" |
| Keyway Width (Inch) | 0.321" |
| Keyway Depth (Inch) | 0.193" |
| Cutting Diameter (mm) | 50.8 mm |
| Cutting Diameter (Inch) | 2" |
| Max Cutting Diameter (Inch) | 2.287" |
| Functional Length (Inch) | 1.575" |
