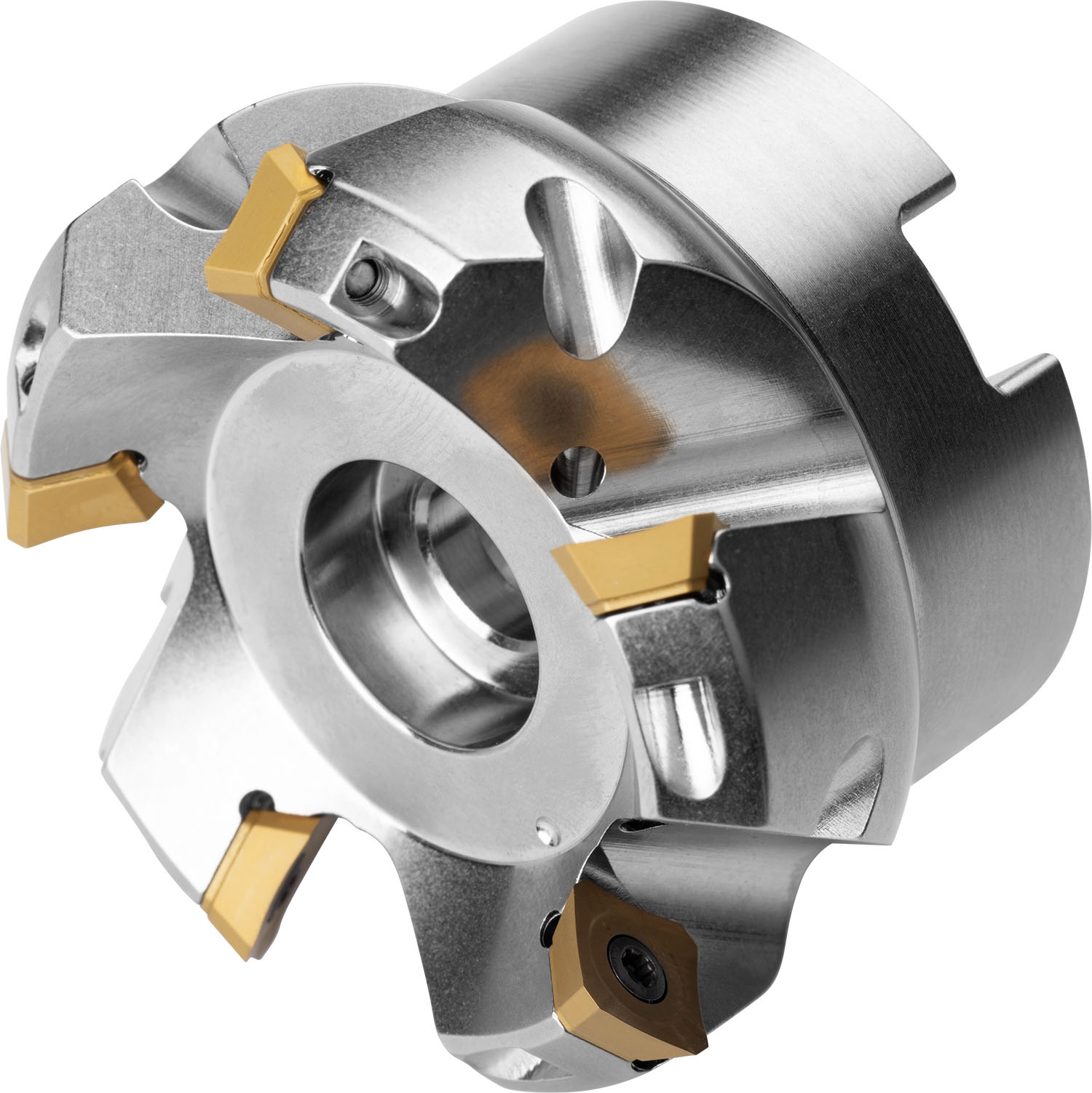

Pramet 200A05R-IS45SE09F-C | 50.8" Diameter x 1.575" Functional Length Indexable Copy Face Mill

$476.00
Ships:
From Partner Facility
Ships:
From Partner Facility
interval quantity:
1
SKU:
23145316
Weight:
13.44 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping
Face mill with positve/negative geometry which utilises 5 off SEET 09T3AF.. or SEMT 09T3AF.. single-sided inserts, cutting diameter 2.000 to maximum 2.378'' with 45° approach angle and .750'' connection bore according to DIN 8030-A, 1.575'' protrusion length, through coolant for face milling and chamfering with a maximum depth of cut of .177''.

Product Specifications
EDP Number6789716
Peripheral Effective Cutting Edge Count5
Cutting Pitch Differential1
Coolant Supply Property1
Axial Rake Angle20
Radial Rake Angle-5
Max Rotational Speed15600
Connection Diameter (mm)19.1 mm
Connection Diameter (Inch)0.75"
Counterbore Diameter Connection Bore (Inch)0.63"
Keyway Width (Inch)0.321"
Keyway Depth (Inch)0.193"
Cutting Diameter (mm)50.8 mm
Cutting Diameter (Inch)2"
Max Cutting Diameter (Inch)2.378"
Functional Length (Inch)1.575"
