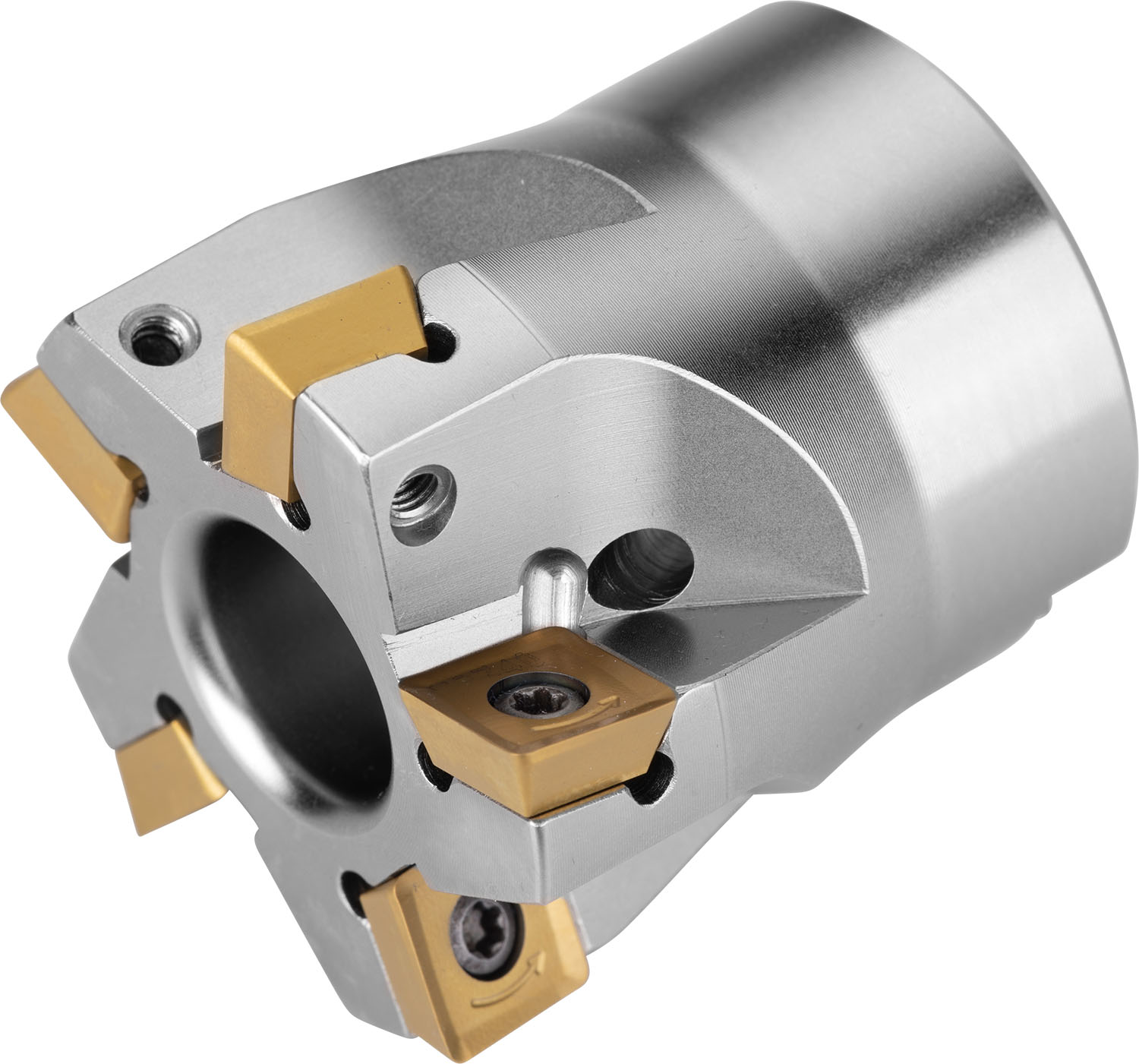

Shoulder mill with positve/negative geometry which utilises 6 off SOMT 09T3.. single-sided inserts, cutting diameter 2.000'' with 90° approach angle and .750'' connection bore according to DIN 8030-A, 1.575'' protrusion length, through coolant for shallow shoulder milling, shallow slot milling and plunge milling with a maximum depth of cut of .315''.
Product Specifications
| EDP Number | 6789778 |
| Peripheral Effective Cutting Edge Count | 6 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | 10 |
| Radial Rake Angle | -8.8 |
| Max Rotational Speed | 15100 |
| Connection Diameter (mm) | 16 mm |
| Connection Diameter (Inch) | 0.63" |
| Keyway Width (Inch) | 0.321" |
| Keyway Depth (Inch) | 0.193" |
| Cutting Diameter (mm) | 50.8 mm |
| Cutting Diameter (Inch) | 2" |
| Functional Length (Inch) | 1.575" |
