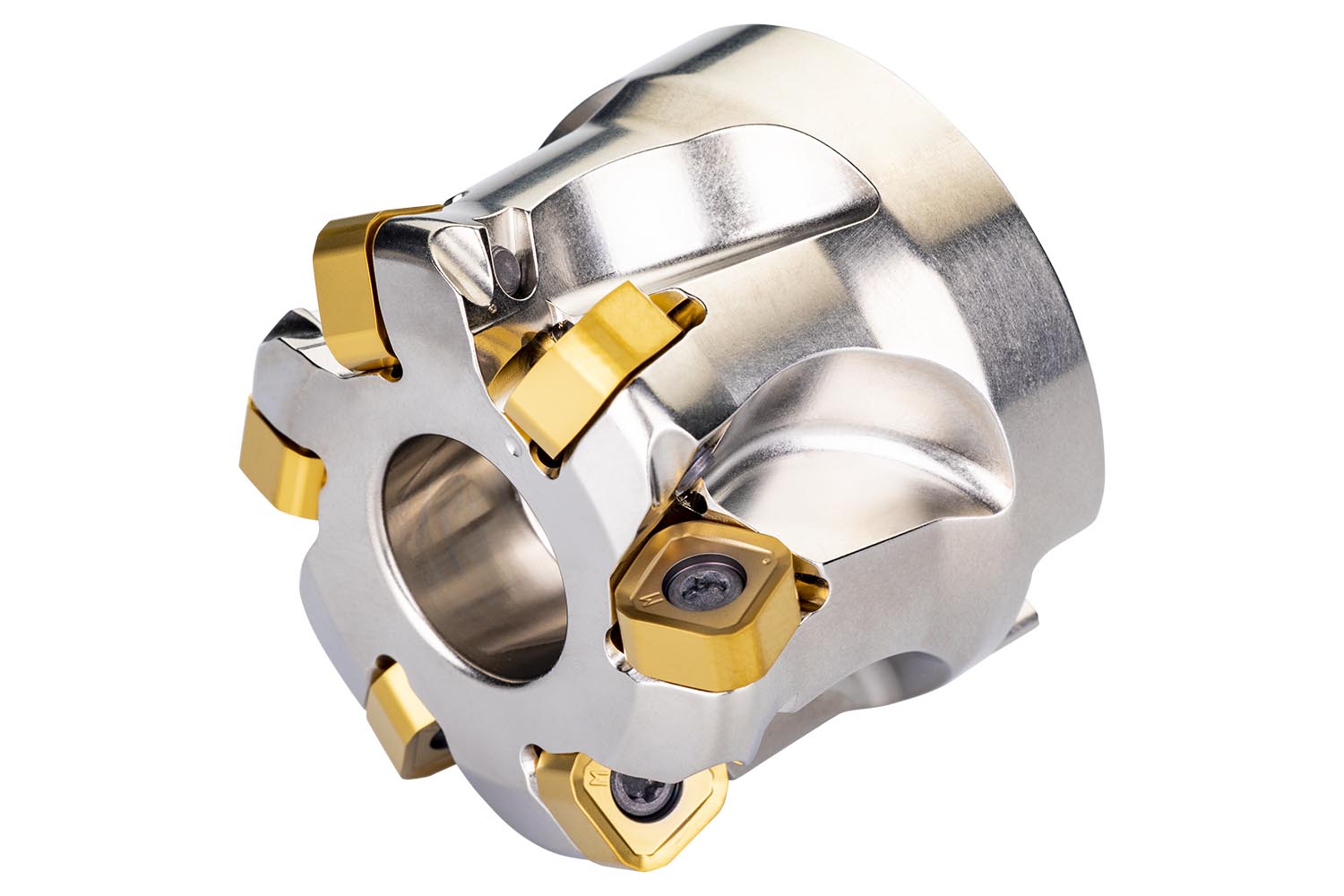

High feed cutter with double negative geometry which utilises 6 off SNGX 1104.. double-sided inserts, cutting diameter 2.000" with 18° approach angle and 0.750" connection bore according to DIN 8030-C, 1.575" protrusion length, through coolant and differential pitch for face milling, copy milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of .067".
Product Specifications
| EDP Number | 7800653 |
| Peripheral Effective Cutting Edge Count | 6 |
| Cutting Pitch Differential | 1 |
| Coolant Supply Property | 1 |
| Tool Cutting Edge Angle | 18 |
| Axial Rake Angle | -10 |
| Radial Rake Angle | -10 |
| Max Rotational Speed | 13900 |
| Connection Diameter (mm) | 19.1 mm |
| Connection Diameter (Inch) | 0.75" |
| Counterbore Diameter Connection Bore (Inch) | 0.63" |
| Keyway Width (Inch) | 0.321" |
| Keyway Depth (Inch) | 0.193" |
| Cutting Diameter (mm) | 36.9 mm |
| Cutting Diameter (Inch) | 1.453" |
| Max Cutting Diameter (Inch) | 2" |
| Functional Length (Inch) | 1.575" |
