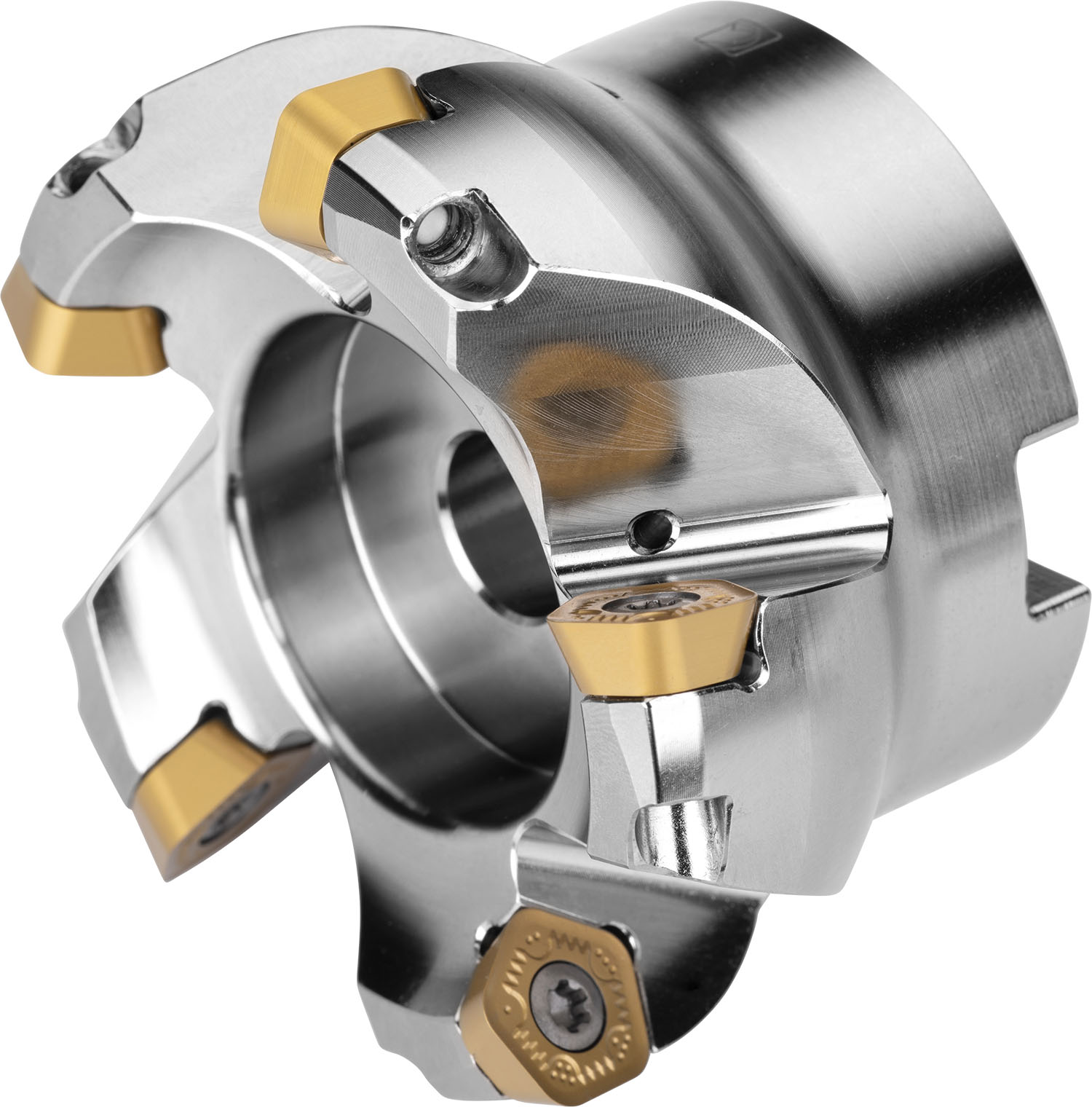

High feed cutter with positve/negative geometry which utilises 5 off PD.X 09, PDKT 09 or PDMW 09 single-sided inserts, cutting diameter 2.500'' with 19° approach angle and .750'' connection bore according to DIN 8030-A, 1.575'' protrusion length, through coolant for face milling with a maximum depth of cut of .079''.
Product Specifications
| EDP Number | 6792980 |
| Peripheral Effective Cutting Edge Count | 5 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | 10 |
| Radial Rake Angle | -1 |
| Max Rotational Speed | 9400 |
| Connection Diameter (mm) | 19.1 mm |
| Connection Diameter (Inch) | 0.75" |
| Counterbore Diameter Connection Bore (Inch) | 0.63" |
| Cutting Diameter (mm) | 49 mm |
| Cutting Diameter (Inch) | 1.931" |
| Max Cutting Diameter (Inch) | 2.5" |
| Functional Length (Inch) | 1.575" |
