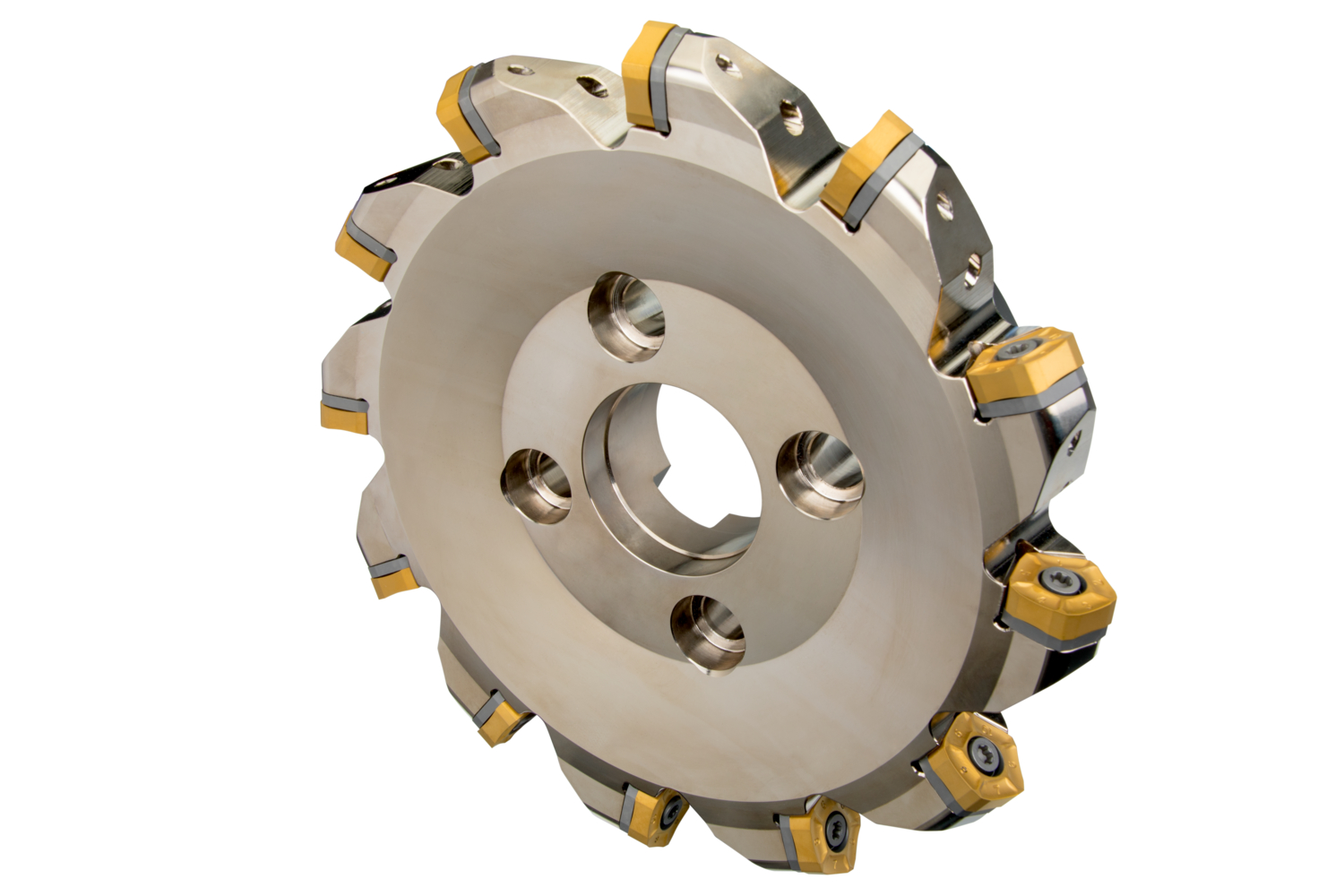

Face mill with double negative geometry which utilises 10 off PNMU 1308DN.. or PNMQ 1308DN.. double-sided inserts, cutting diameter 200 to maximum 215.8 mm with 57° approach angle and 60 mm connection bore according to DIN 8030-C, 63 mm protrusion length for face milling with a maximum depth of cut of 10.0 mm.
Product Specifications
| EDP Number | 6761675 |
| Peripheral Effective Cutting Edge Count | 10 |
| Insert Index Count | 10 |
| Axial Rake Angle | -4 |
| Radial Rake Angle | -5 |
| Max Rotational Speed | 2400 |
| Connection Diameter (mm) | 60 mm |
| Connection Diameter (Inch) | 2.362" |
| Keyway Width (mm) | 25.7 mm |
| Keyway Depth (mm) | 14 mm |
| Cutting Diameter (mm) | 200 mm |
| Max Cutting Diameter (mm) | 215.8 mm |
| Cutting Diameter (Inch) | 7.874" |
| Functional Length (mm) | 63 mm |
