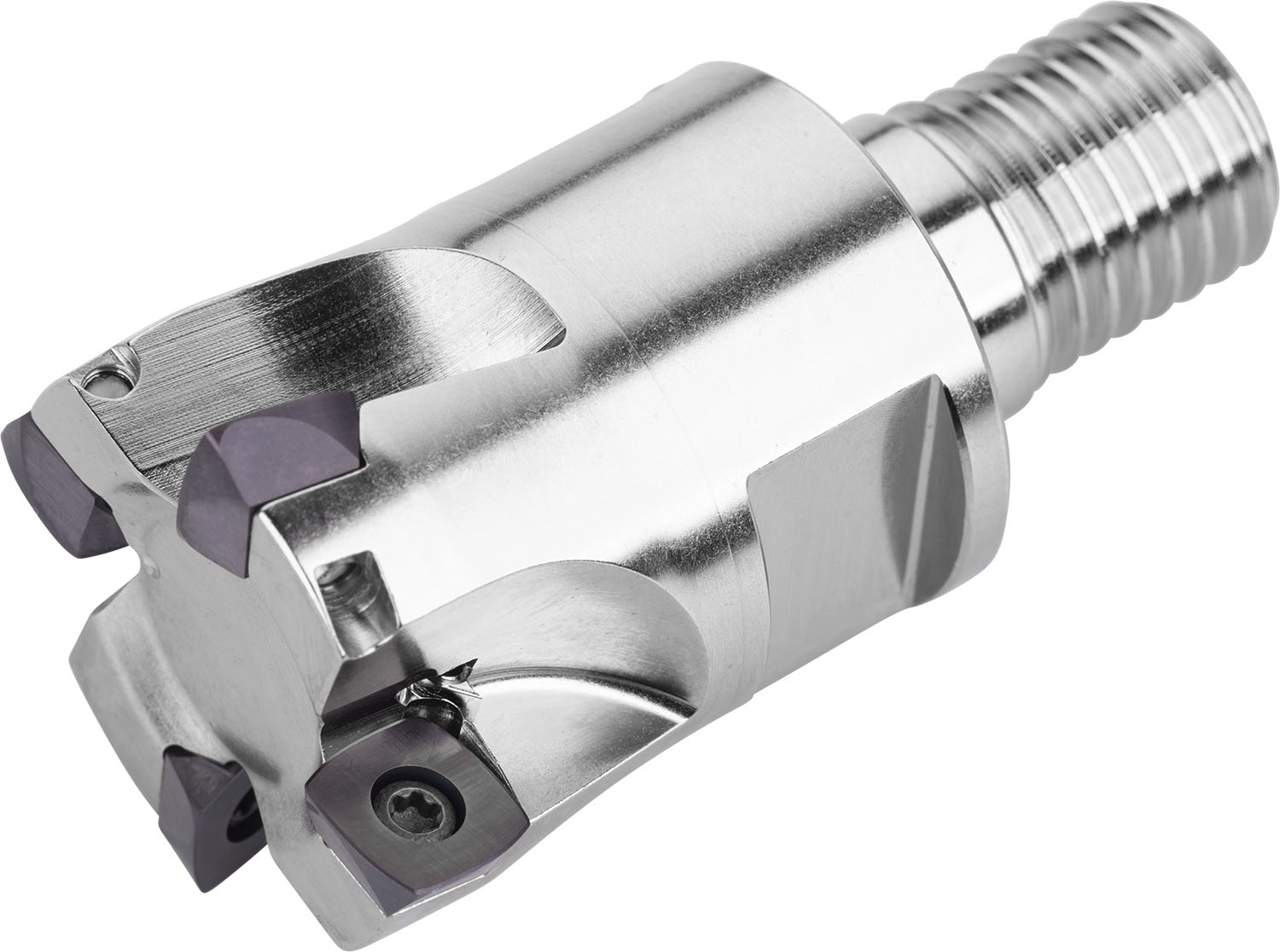

High feed cutter with positve/negative geometry which utilises 3 off ZDCW 09T3.. single-sided inserts, cutting diameter 25 mm with M12 threaded shank for standard modular tool-holders, 32 mm protrusion length, through coolant for face milling.
Product Specifications
| EDP Number | 6759675 |
| Peripheral Effective Cutting Edge Count | 3 |
| Insert Index Count | 3 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | 10 |
| Radial Rake Angle | -6 |
| Connection Diameter (mm) | 12.5 mm |
| Connection Diameter (Inch) | 0.492" |
| Cutting Diameter (mm) | 11.6 mm |
| Max Cutting Diameter (mm) | 25 mm |
| Cutting Diameter (Inch) | 0.457" |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Functional Length (mm) | 32 mm |
| Thread Diameter Size | M12 |
