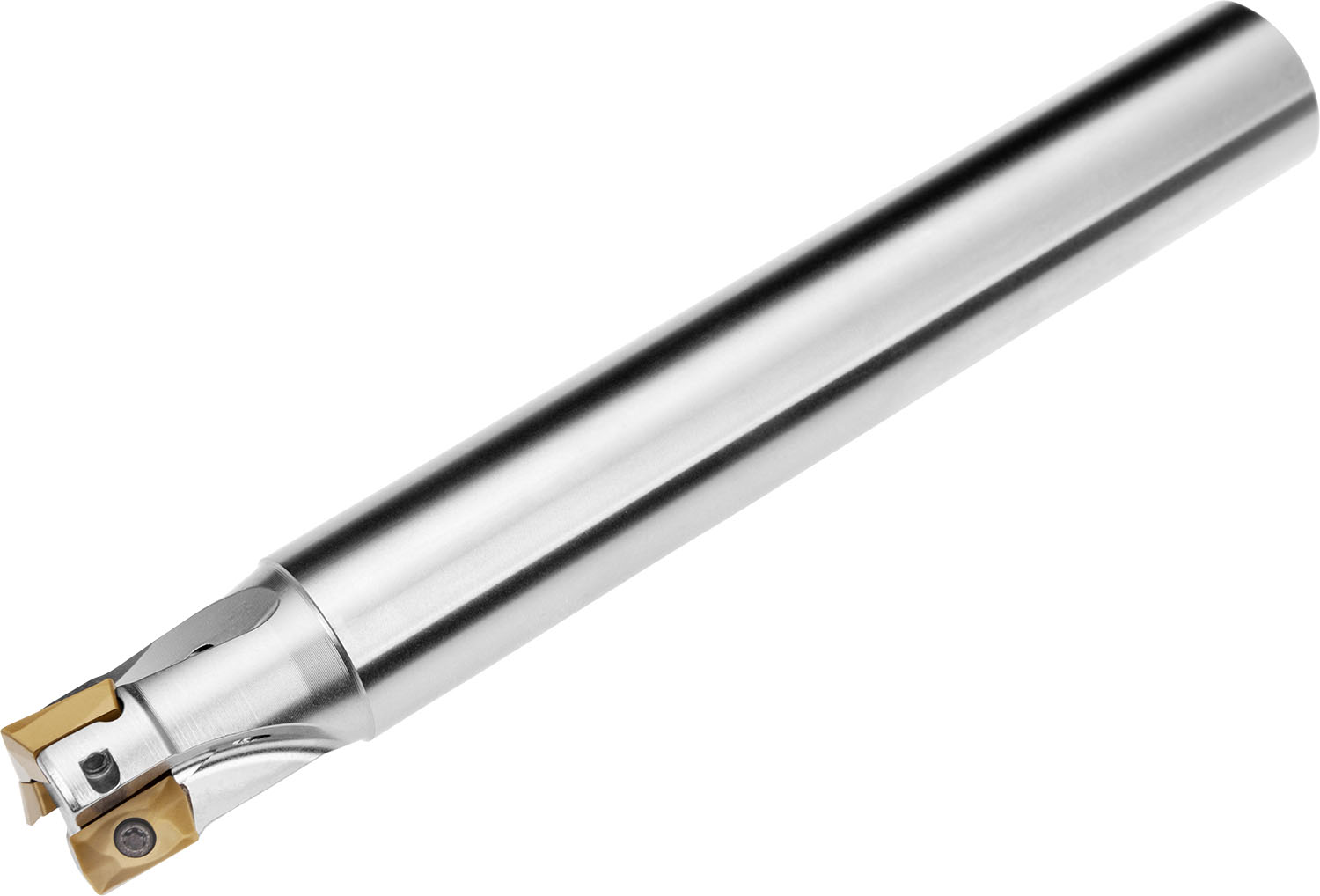

Pramet 20A3R029A18-SAD11E-C | 0.787" Diameter x 7.874" OAL Indexable Square-Shoulder End Mill

$190.40
Ships:
From Partner Facility
Ships:
From Partner Facility
interval quantity:
1
SKU:
23152304
Weight:
13.37 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping
Shoulder mill with positve/negative geometry which utilises 3 off ADMX 11T3.. or ADEX 11T3.. single-sided inserts, cutting diameter 20 mm with 90° approach angle and 18 mm parallel shank according to DIN 1835A, 29 mm functional and 200 mm overall length, through coolant for copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 9.0 mm.

Product Specifications
EDP Number6800795
Peripheral Effective Cutting Edge Count3
Insert Index Count3
Coolant Supply Property1
Axial Rake Angle5
Radial Rake Angle-11.5
Max Rotational Speed27000
Connection Diameter (mm)18 mm
Connection Diameter (Inch)0.709"
Cutting Diameter (mm)20 mm
Cutting Diameter (Inch)0.787"
Overall Length (mm)
Overall Length (Inch)
Usable Length (mm)29 mm
