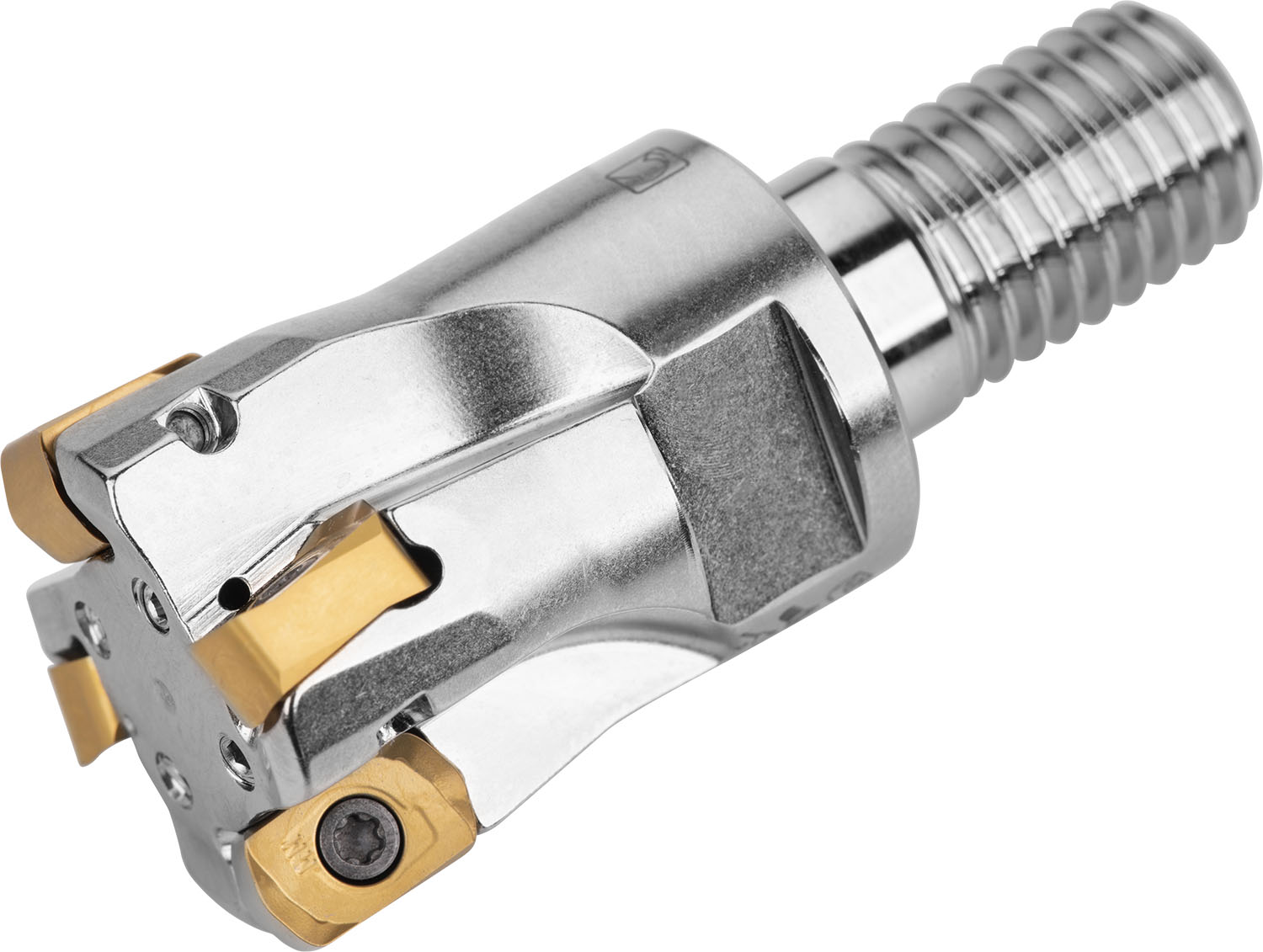

High feed cutter with positve/negative geometry which utilises 3 off BNGX 10T3.. or ANHX 10T3.. inserts, cutting diameter 20 mm with 20 Degree approach angle and M10 threaded shank for standard modular tool-holders, 30 mm protrusion length, through coolant for face milling, copy milling, shallow shoulder milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 1.0 mm.
Product Specifications
| EDP Number | 7259722 |
| Peripheral Effective Cutting Edge Count | 3 |
| Insert Index Count | 3 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | -10 |
| Radial Rake Angle | -10 |
| Max Rotational Speed | 27700 |
| Connection Diameter (mm) | 10.5 mm |
| Connection Diameter (Inch) | 0.413" |
| Cutting Diameter (mm) | 13.4 mm |
| Max Cutting Diameter (mm) | 20 mm |
| Cutting Diameter (Inch) | 0.528" |
| Overall Length (mm) | 90 mm |
| Overall Length (Inch) | 3.543" |
| Functional Length (mm) | 30 mm |
| Thread Diameter Size | M10 |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Related Products
Brand:
Pramet
Cutting Diameter (Decimal Inch):
0.5280"
Cutting Diameter (mm):
13.40mm
Shank Diameter (Decimal Inch):
0.4130"
Shank Diameter (mm):
10.50mm
Number of Cutter Inserts:
3
