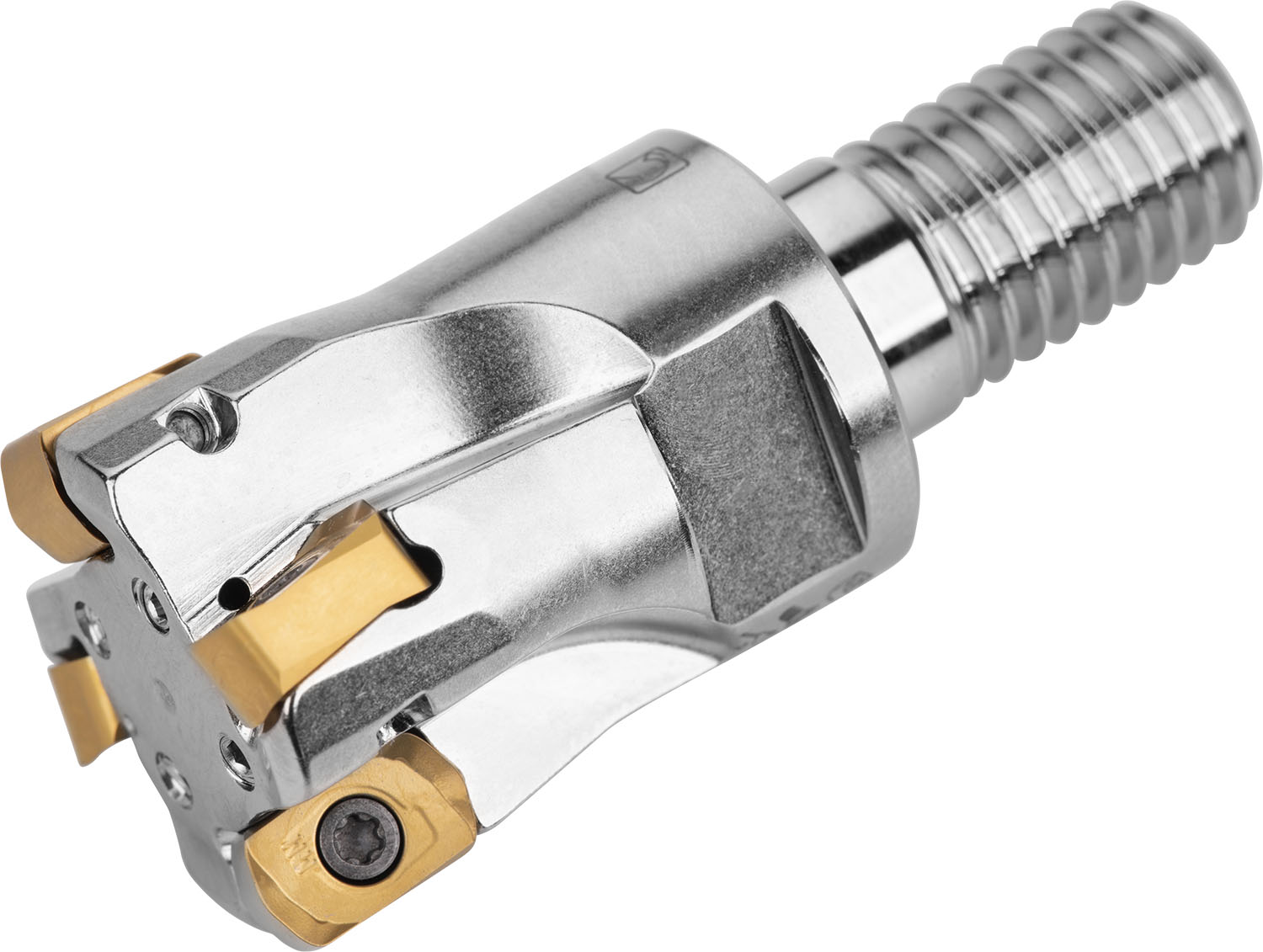

High feed cutter with positve/negative geometry which utilises 4 off BNGX 10T3.. or ANHX 10T3.. inserts, cutting diameter 20 mm with 20° approach angle and M10 threaded shank for standard modular tool-holders, 30 mm protrusion length, through coolant for face milling, copy milling, shallow shoulder milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 1.0 mm.
Product Specifications
| EDP Number | 7459341 |
| Peripheral Effective Cutting Edge Count | 4 |
| Insert Index Count | 4 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | -10 |
| Radial Rake Angle | -10 |
| Max Rotational Speed | 27700 |
| Connection Diameter (mm) | 10.5 mm |
| Connection Diameter (Inch) | 0.413" |
| Cutting Diameter (mm) | 13.4 mm |
| Max Cutting Diameter (mm) | 20 mm |
| Cutting Diameter (Inch) | 0.528" |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Functional Length (mm) | 30 mm |
| Thread Diameter Size | M10 |
